Embedded Vision Edge Computer

Gidel’s FantoVision family is a pioneering compact computer enabling image acquisition and processing using CoaXPress, CameraLink, or 10GigE Vision over 1-4 10G links. The FantoVision’s innovative architecture merges high-end image acquisition with real-time image processing and or compression using an Nvidia Jetson™ embedded GPU with optional pre-processing/compression on an Intel FPGA.

Open Customizable Image Processing

The FantoVision has an open architecture enabling embedded AI/image processing on GPU and FPGA. Software engineers can program their algorithms on the GPU using CUDA C/C++ and NVIDIA’s  libraries. In addition, developing and deploying an optional pre-processing block on the FPGA is simple and fast using Gidel’s novel ProcVision™ Suite.

Scalable Solution

The FantoVision opens the way for new compact, cost-effective, scalable vision and imaging solutions for high-bandwidth, low-latency applications. Multi-FantoVision units can be interconnected to provide unique and scalable topologies. Using Gidel’s InfiniVision™ open frame grabber flow, 100+ sensors can be synchronized and processed simultaneously.

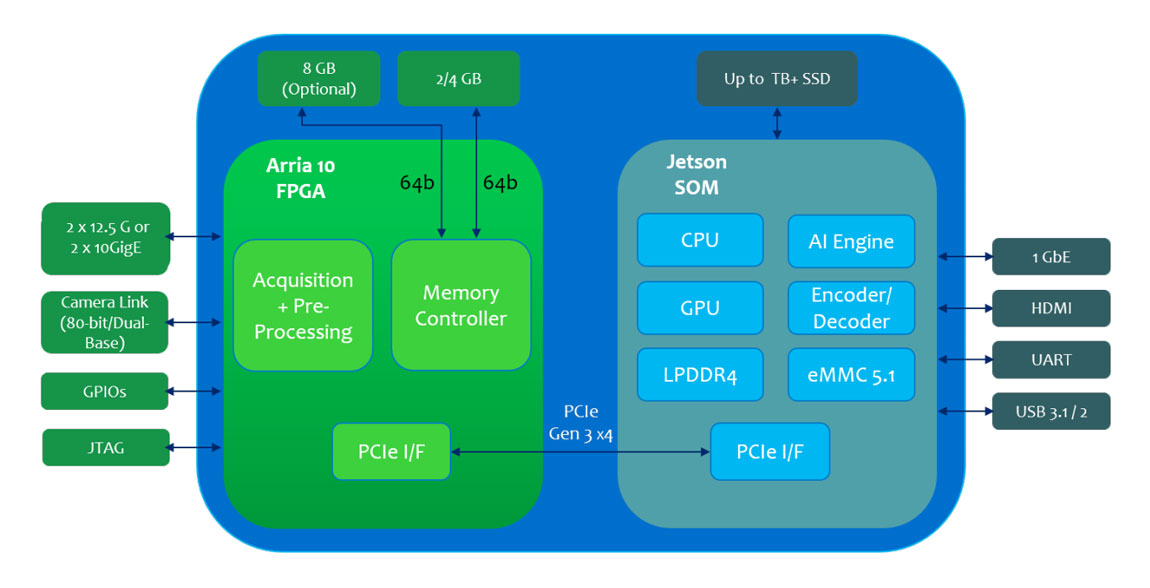

Gidel FantoVision 40 accelerator diagram showing key hardware elements.
Hardware accelerator diagram: Gidel FantoVision 40.

Product Data

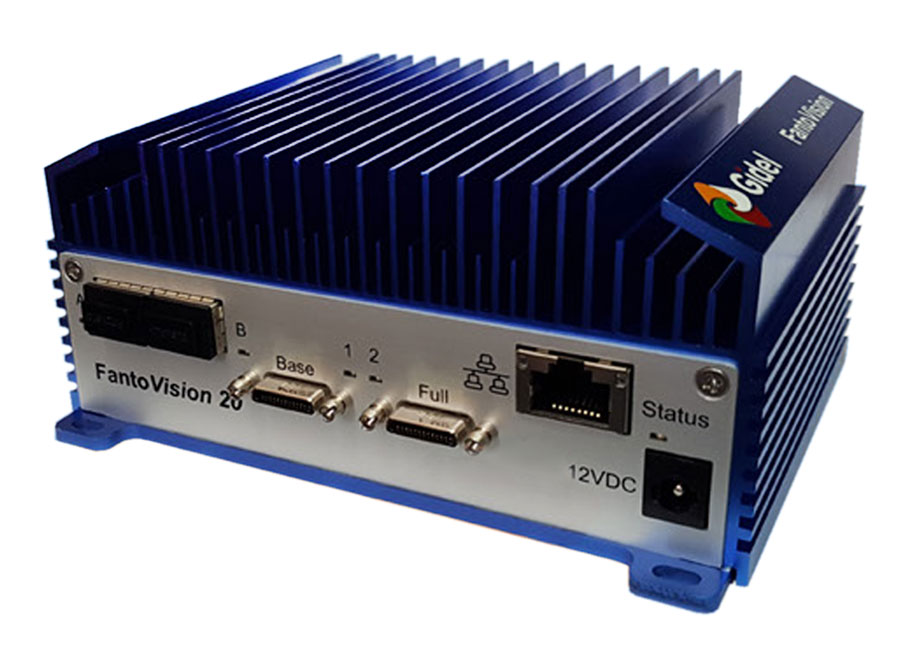

Gidel FantoVision edge computer for high-bandwidth vision.

Please use our frame grabber selector to find your preferred model.

Gidel FantoVision 40 edge computer is FPGA-based Frame Grabber with optional pre-processing/compression on Intel Arria 10 – 160/270/660 FPGA.
Gidel FantoVision: FPGA-based Frame Grabber.
Gidel FantoVision edge computer is NVIDIA Jetson NX GPU with optional Jetson Nano/TX2 NX.
Gidel FantoVision: NVIDIA Jetson NX GPU.
