Kaya Instruments CoaXPress™ Range Extender over Fiber | Four links, 4 SFP+ channels | up to 80 km | PoCXP

The CoaXPress Range Extender over Fiber by KAYA Instruments streams high resolution images over up to 80 km in single-mode. In multi-mode, distances up to 300 meters can be covered. Isolation of the cable suppresses radiation and electromagnetic interference, and avoids problems related to grounding. Secure communications are assured as the cable can not be easily tapped. The camera-side converter can provide power to the camera via CoaXPress. The host-side converter can draw power from the frame-grabber. The SFP+ optical connection can be easily changed, providing high flexibility. Uplink speeds are up to 12 Gbps, and downlink is 20.83 Mbps.

This bidirectional range extender is plug-and-play, requiring no configuration. It is compatible with CXP 1.1 and CXP 2.0 and supports Power over CoaXPress (PoCXP). A DIN rail mounting is available. Temperature operating range is 0 °C to 50 °C, and the board is available for OEM.

We offer the Kaya Range Extender in three formats:

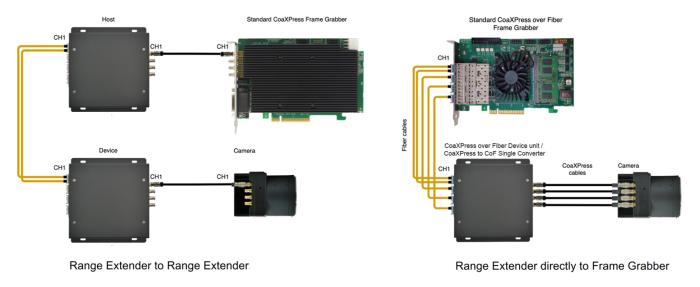

Kaya CoaXPress 2.0 Range Extender over Fiber Single CoaXPress 2.0 link per camera and up to 12.5 Gbps per link.
Single CoaXPress 2.0 link per camera with up to 12.5 Gbps per link topology.

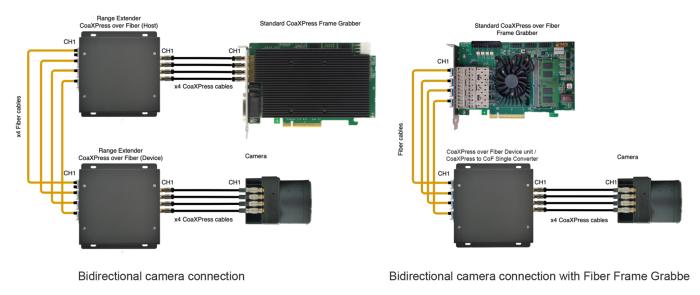

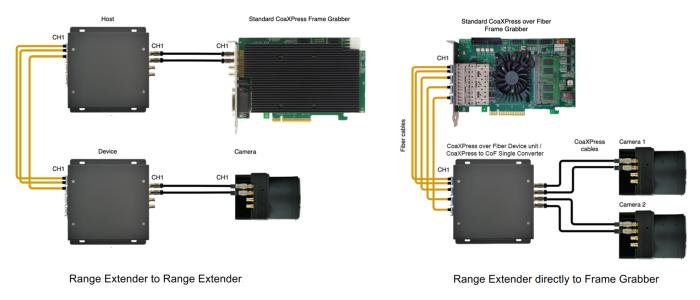

Kaya CoaXPress 2.0 Range Extender over Fiber Single, Dual or Quad CoaXPress 2.0 link per camera and up to 12.5 Gbps per link.
Single, Dual or Quad CoaXPress 2.0 link per camera with up to 12.5 Gbps per link topology.

Product Data

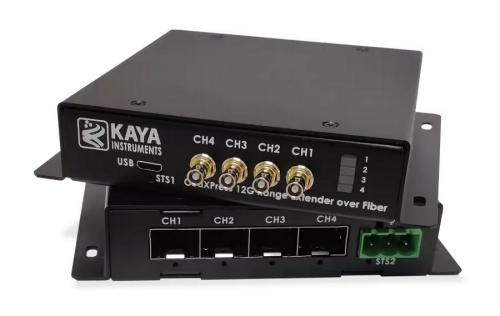

Kaya Instrument CoaXPress 2.0 Range Extender over Fiber with 4 links, 4 SFP plus channels, and up to 80 km.
Kaya CoaXPress 2.0 Range Extender over Fiber with 4links and 4 SFP+ channels.
Kaya Instruments CoaXPress Range Extender over Fiber with 4 SFP plus optical connection channels.
Kaya CoaXPress Range Extender over Fiber with 4 SFP+ channels.
Kaya Instruments CoaXPress Range Extender over Fiber supports Power over CoaXPress PoCXP.
Kaya CoaXPress Range Extender over Fiber supports Power over CoaXPress (PoCXP).
Kaya Instruments Komodo FXP CoaXPress over Fiber acquisition system receives up to 4 video streams from CoaXPress devices with up to 400 meters distances.
Kaya Komodo FXP CoaXPress over Fiber receives up to 4 video streams from CoaXPress devices.
