The 2 channel Kaya Komodo II (KY-CXP-12G-2CH-PCIe3x8) can receive video streams from up to 2 CoaXPress links in single, dual or quad modes. Each link supports standard CoaXPress bitrates of up to 12.5 Gbps including 13W PoCXP.
The Komodo II 2CH is compatible with CoaXPress 12G links and communicates with computer memory via PCIe Generation 3 with 8 lanes. This frame grabber includes GPIO for machine control signals, such as triggers, shaft encoders, exposure control and general I/O, independent of video stream acquisition.
The Komodo II uses standard Micro-BNC connectors as a CoaXPress interface to the camera and a standard HD DB26 D-sub panel mount connector for general purpose I/O.

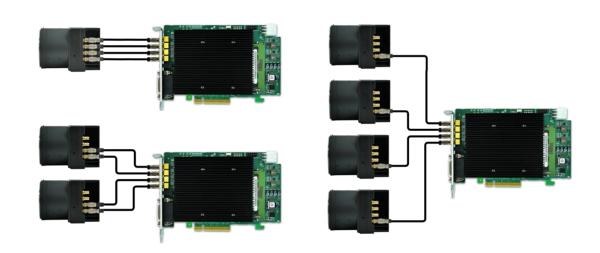

Single Camera Topology for Komodo II
Single, Dual or Quad CoaXPress links with up to 12.5 Gb per link topology
Maximum throughput to PCIe of 55 Gb/sec
Single Camera Topology: Komodo II CoaXPress.
Dual Camera Topology for Komodo II
Two Single or Dual CoaXPress links with up to 12.5 Gb per link topology
Maximum throughput to PCIe of 55 Gb/sec
Dual Camera Topology: Komodo II CoaXPress.
Quad Camera Topology for Komodo II
Four Single CoaXPress links with up to 12.5 Gb per link topology

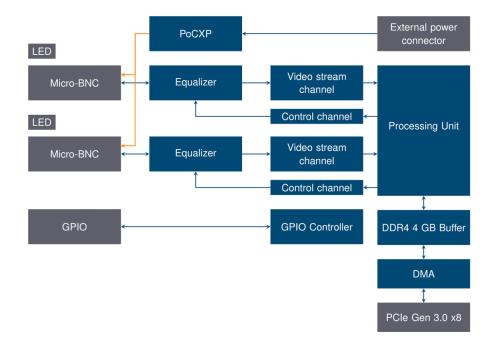

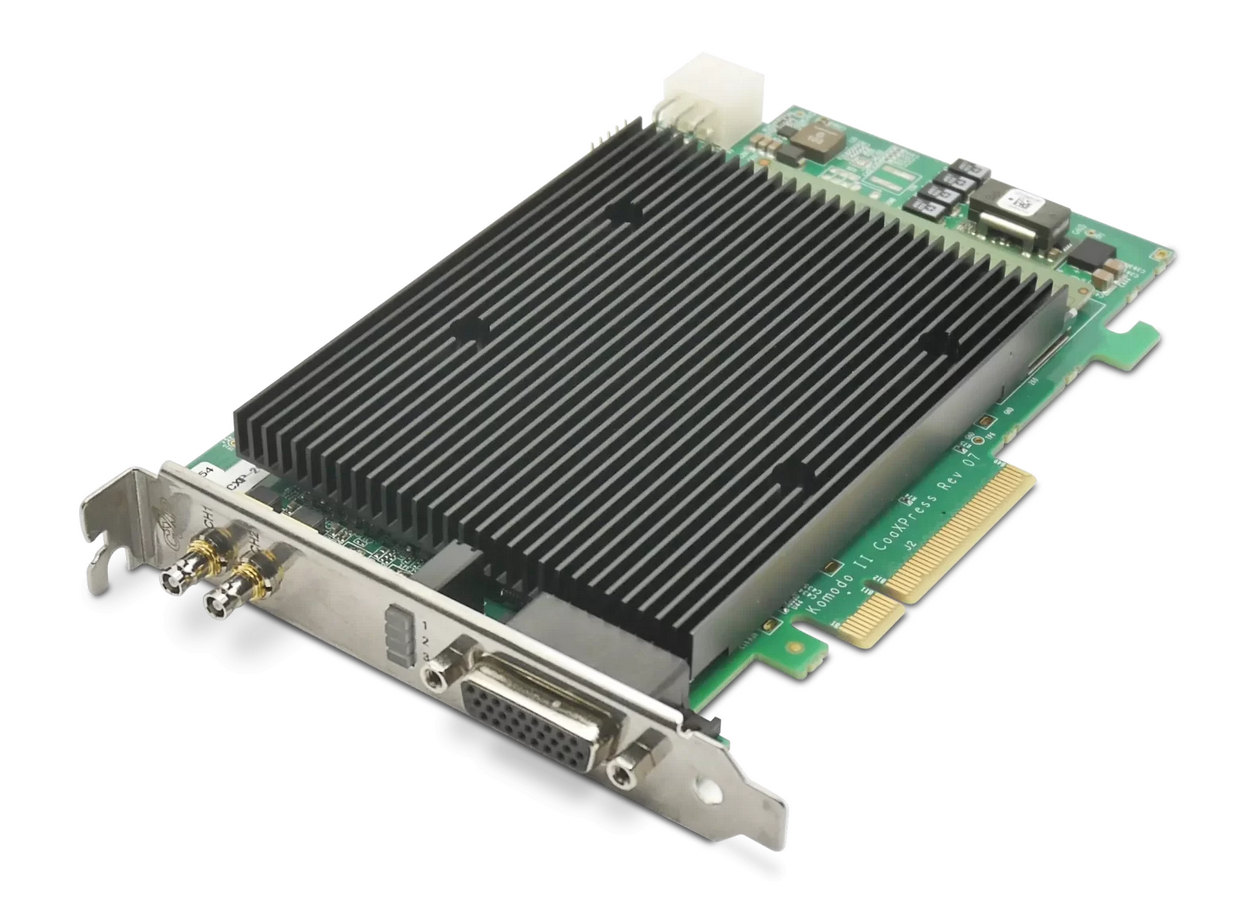

Kaya Komodo II CoaXPress 2 Channel Frame Grabber KY-CXP-12G-2CH-PCIe3x8 with up to 2 CoaXPress links in single, dual or quad modes. Hardware accelerator diagram: Komodo II 2CH CoaXPress FPGA board.
