EDT VisionLink F1 Camera Link – 1-lane PCIe Frame Grabber

The VisionLink F1 is a 1-lane PCIe framegrabber with one or two SDR26 connectors for up to two Camera Link cameras, base mode. The F1 operates in standard mode control (CC) lines. Camera control is by UART on board, and it has external triggering. The board has 1-, 4-, 8-, or 16-lane PCIe slots, and fits into half or full height back panels. A PCI Express bus slot (1, 4, 8, or 16 lanes) that is not dedicated to display use must be available.

Available options are:

Note: VisionLink F-series boards work with existing DV and DVa products. Applications on older boards might need to be recompiled then re-linked with an current SDK. A current EDT driver should be used.

Product Data

Please use our frame grabber selector to find your preferred model.

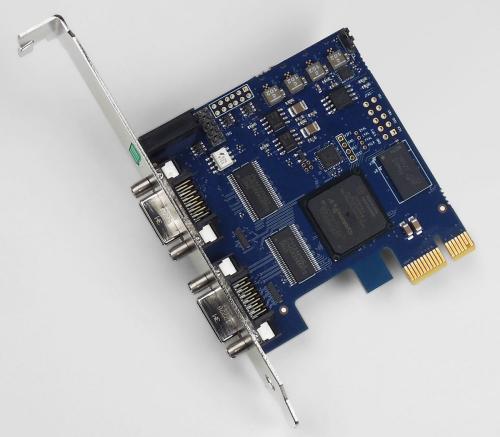

VisionLink F1 Camera Link Frame Grabber by EDT supporting 1-, 4-, 8-, or 16-lane PCIe slots and equipped 2x SDR26 connectors for 2x Camera Link cameras.
EDT VisionLink F1 Camera Link Frame Grabber: 1-, 4-, 8-, or 16-lane PCIe slots.
