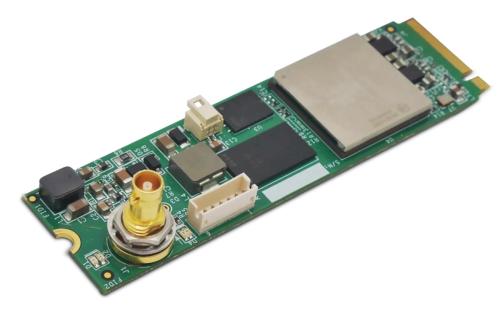

Kaya Instruments “Predator II M.2” 1-Channel CXP 12G CoaXPress 2.1 Frame Grabber for laptops
Kaya Instruments “Predator” M.2 is a CoaXPress 2.1 frame grabber with M.2 form factor for laptops. It has 1 channel for 12.5 Gbps throughput and supports PCIe Gen2 with 2 lanes.
The Kaya Instruments “Predator II” CoaXPress 12G M.2 frame grabber supports the CoaXPress v2.1 standard. It receives video streams from a single CXP link. The link supports standard CoaXPress bitrates of up to 12.5 Gbps.

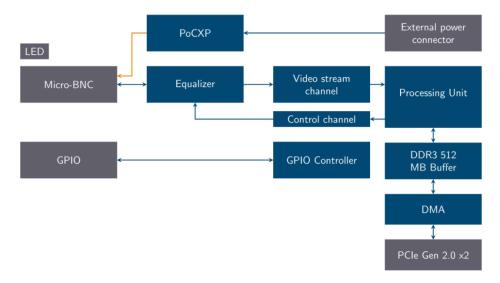

This frame grabber conforms to the compact M.2 standard and can easily receive video streams on the CoaXPress link and transmit them to computer memory through the PCIe interface. This M.2 frame grabber also provides an external GPIO for machine control signals, such as triggers, timers, shaft encoders, exposure control and general I/O which can be controlled besides video stream acquisition. This frame grabber uses standard Micro-BNC connectors as a CoaXPress interface to the camera. Host communication is via PCIe Gen2 x2 for video uploading and configuration.
Features of the KY-FGP-II-M2
- Small M.2 form factor
- 1 CoaXPress link
- PCie 2.0 (Gen 2) x2 bus
- Camera controls and triggers
- Flexible GPIO interface:
- 4 TTL configurable I/Os
- 4 LVTTL configurable I/Os
- 4 LVDS inputs and outputs
- 4 quadrature rotary encoders
- Integrated strobe controller
- 4 timers
- CoaXPress 2.1 compliant
- Power over CoaXPress with 13W per link
- Multiple Frame Grabbers synchronization
- Micro-BNC connector for CoaXPress links
- GUI Interface
- Supporting Windows and Linux OS
- API for custom application development
- Plug-in modules for Matlab, HALCON, Cognex
- and Labview
- Gen<i>Cam compliant
- GenTL support
- Data rates up to 12.5 Gbps per link
