EDT VisionLink F4 Camera Link – 4-lane PCIe Frame Grabber

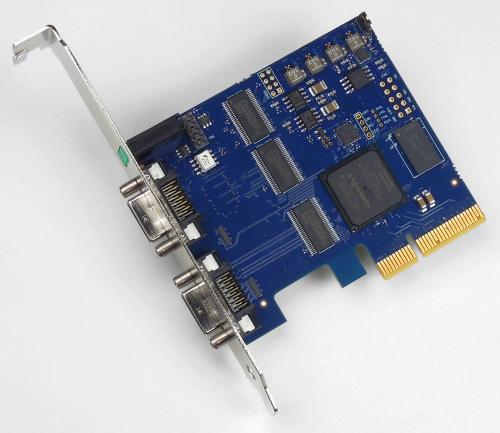

The EDT VisionLink F4 is a 4-lane PCIe frame-grabber with two SDR26 connectors for up to two base through full mode Camera Link cameras. Operates in standard mode control (CC) lines. Camera control is by UART on board, and it has external triggering. The board has 4-, 8-, or 16-lane PCIe slots, and fits into half or full height back panels. A PCI Express bus slot (4, 8, or 16 lanes) that is not dedicated to display use must be available.

Available options are:

• half-height backpanel
• full-height backpanel
• full-height backpanel with Lemo connector for triggering and time stamps

Note: VisionLink F-series boards work with existing DV and DVa products. Applications on older boards might need to be recompiled then re-linked with an current SDK. A current EDT driver should be used.

Product Data

• Specifications: VisionLink F4 Camera Link 4-lane framegrabber for PCI Express
• User Guide: VisionLink F-Series
• Configuration Guide: Device Configuration Guide For devices used with EDT framegrabbers
• Firmware Reference: Firmware Guide for Camera Link Products
