JetCam 160 – a global shutter camera with LUX 160 sensor, 80 fps, and 4704×3424 resolution

The JetCam 160 with 40 Gbps fiber optic interface (25 Gbps CoaXPress) by Kaya Instruments is a global shutter camera with a Fiber or CoaXPress interface. Capture is up to 300+ fps, and resolution is 16 megapixel 4704 × 3424. This camera has a global shutter sensor 3.9 μm LUX160 CMOS. Lens control is direct and needs no external unit. Excellent for limited space due to small form factor and low power demand. A monitor can be connected as a view finder or to help installation via 3G SDI output. Cable length up to 10 km. The system is customizable to user specification and is compatible with Kaya Komodo frame grabbers and the Vision Point SDK. Mounts are Nikon F and B4 2/3”, both with integrated lens control.

Workflow of the Kaya Instruments JetCam 160 shutter camera showing an interaction scheme among JetCam 160, view finder monitor, frame grabber, vision point driver and SDK.
Kaya Instruments JetCam 160 camera workflow: JetCam 160 / View finder monitor / Frame grabber / Vision point driver and SDK.

Product Data

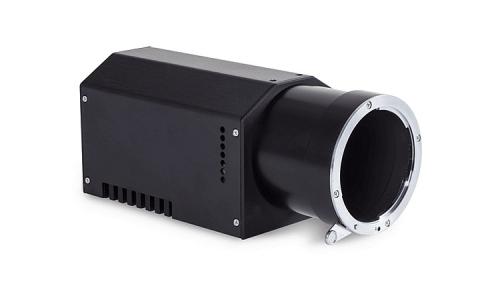

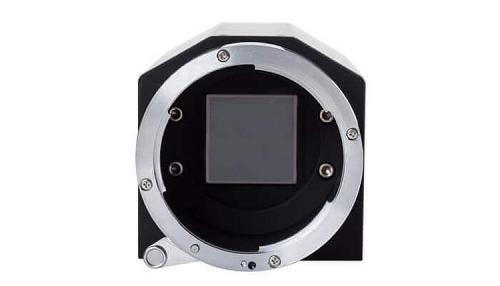

Kaya Instruments JetCam 160 – 16 MP sensor with 3.9 µm pixel size.
JetCam 160 camera with 16 MP sensor and 3.9 µm pixel size.

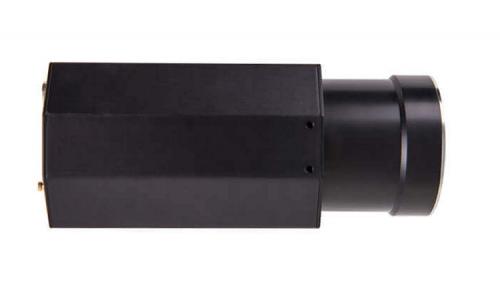

Kaya Instruments JetCam 160 – 4/3" format camera.
JetCam 160 4/3" format camera.

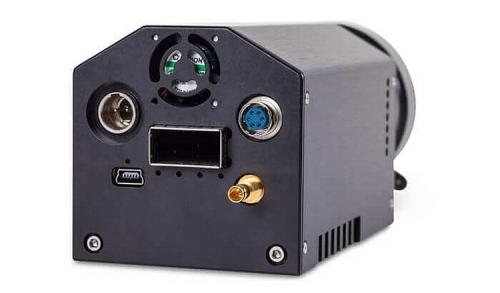

Kaya Instruments JetCam 160 with 40 Gbps Quad SFP plus interface.
JetCam 160 with 40 Gbps Quad SFP+ interface.

Please use our Camera Selector to find your preferred model.

Kaya Instruments JetCam 160 supports F-Mount, B4, C-mount, Canon EF-mount, Birger EF-mount, PL mount
JetCam 160 camera: F-Mount, B4, C-mount, Canon EF-mount, Birger EF-mount, PL mount.
Kaya Instruments JetCam 160 shutter camera supporting Nikon, Fujinon, and RS232-RS485 custom lens control.
JetCam 160 camera: Nikon, Fujinon lens control and custom lens control through RS232/RS485.

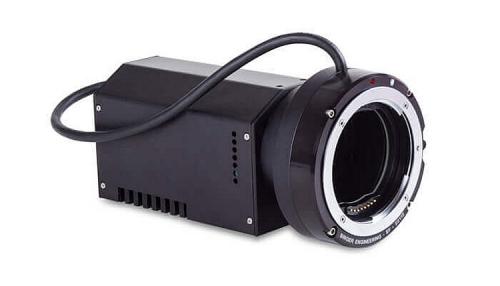

Kaya Instruments JetCam 160 shutter camera has Birger lens control.
JetCam 160 camera: Birger lens control.

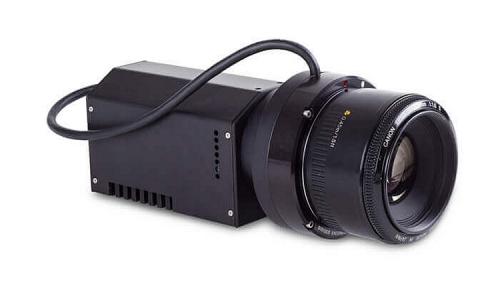

Kaya Instruments JetCam 160 camera with integrated Birger lens control via B4 2/3" mount plus Canon lens.
JetCam 160 camera: integrated Birger lens control with Canon lens.
