Kaya Instruments PCIe/104 “Komodo II“ CoaXPress 2.0 Frame Grabber | PCIe / 104, CXP2, 12G, 4CH

The Kaya Instruments Komodo II CoaXPress 12G PCIe/104 frame grabber is considered best-in-class.

Supporting the CoaXPress 2.0 standard, it receives video streams from up to 4 CoaXPress links in single, dual or quad modes. It can also be used for simultaneous capture from multiple cameras. Each link supports standard CoaXPress bitrates of up to 12.5 Gbps.

The frame grabber is delivered in the compact PCIe/104 form factor and standard. It is rugged and reliable, and the four-corner mounting holes make it particularly resistant to shock and vibrations. These features make the Komodo II CoaXPress 12G PCIe/104 ideally suited for industrial, defense and aerospace machine vision systems.

The Komodo II CoaXPress 12G PCIe/104 can receive video streams on the CoaXPress links and transmit them to computer memory through the PCIe Gen 3, 8 lane interface. This product also provides an external GPIO for machine control signals, such as triggers, timers, shaft encoders, exposure control and general I/O which can be controlled alongside video stream acquisition. Our frame grabber uses standard Micro-BNC connectors as a CoaXPress interface to the camera.

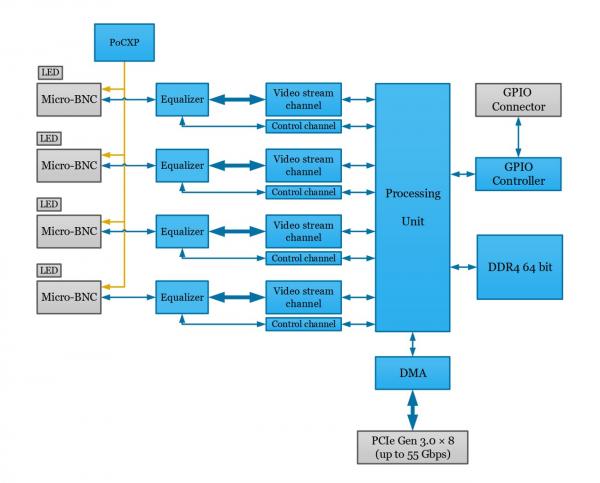

Hardware Kaya Komodo II CoaXPress PCIe/104 KY-CXP-12G-4CH-PCI104 accelerator diagram showing specification and operation of electronic elements of the board.
Hardware accelerator diagram: Kaya Komodo II CoaXPress PCIe/104 Frame Grabber

Product Data

Please use our frame grabber selector to find your preferred model.

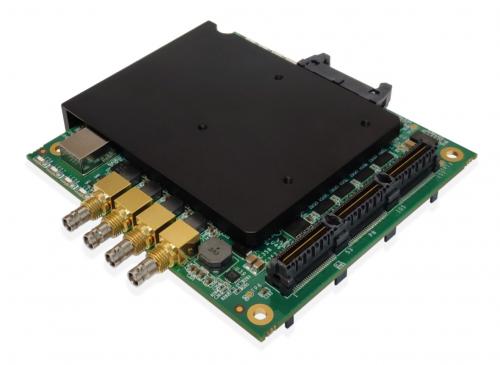

Kaya Komodo II CoaXPress PCIe/104 Frame Grabber 104 KY-CXP-12G-4CH-PCI104 with up to 4 CoaXPress 12.5 Gbps links in single, dual or quad modes.
Kaya Komodo II CoaXPress PCIe/104 Frame Grabber with up to 4 CoaXPress links in single, dual or quad modes.
