Kaya Instruments “Predator II“ CoaXPress Frame Grabber | 1CH 12G CXP2

The Predator II by Kaya Instruments is a low-cost frame grabber that supports the new 12G CoaXPress 2.0 standard.

The single channel CXP2 frame grabber receives a video stream at bitrates up to 12.5 Gbps. The uplink is a 20Mbps interface, and its Power-over-CoaXpress provides up to 20W to the camera.

The single CoaXPress link uses DMA to the PCIe interface. Machine control of triggers, shaft encoders, exposure control, and general IO is via built-in General Purpose I/O (GPIO), which is located on the front bracket for easy access. This operates alongside video streaming to the card.

The CXP camera connectors are standard micro-BNC, and GPIO is via standard D-sub 26 HD connectors. Communication with the host PC for video streaming and control, and configuration is via PCIe, implemented as Generation 2 with 4 lanes (PCIe2g4).

CoaXPress interface bitrates of 1.25Gbps, 3.125Gbps, and 6.25Gbps are also supported by CoaXPress 2.0, as it is backward-compatible with earlier standards preceding CXP2.

Compare the exceptional price-performance of the Kaya Predator II with first-generation single channel CoaXPress frame grabbers from Aon-CXP, Bitflow, or Active Silicon Firebird.

This low profile card supports all on-board image processing methods, and it conforms to 2nd generation CoaXPress 2.0. Future expansion in single channel CoaXPress acquisition is built-in to this frame grabber.

All Kaya Instruments vision products are supported by the downloadable Vision Point software application and SDK, including the CXP2 1CH Predator2.

The Kaya Instruments Predator II single channel CXP2 frame grabber is well suited to applications in machine vision, surveillance, industrial, security, aerospace, defense, and many more.

Ask us about having your own-development proprietary algorithms embedded into this frame grabber as a very low cost alternative replacement substitute for your Silicon Software Marathon or similar frame grabber.

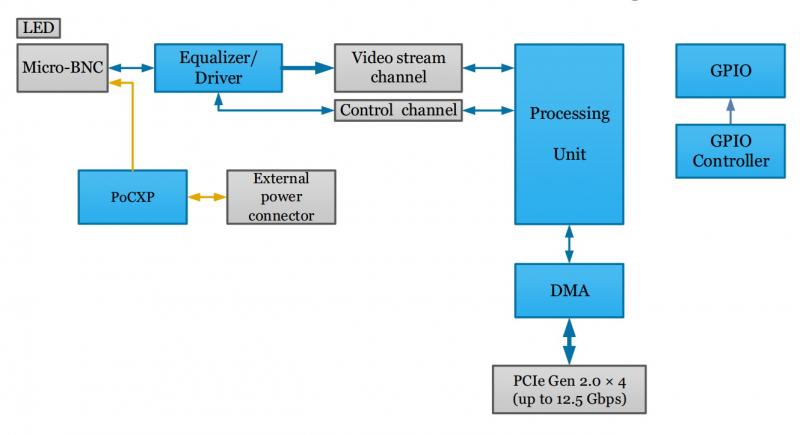

Hardware KY-FGPII accelerator diagram of Kaya Predator2 showing specification and operation of electronic elements of the board.
Hardware accelerator diagram: Kaya KY-FGPII Predator II.

Single Camera Topology

Single KY-FGPII Topology of Predator2 CoaXPress Frame Grabber showing the board and 1x camera links.
Single Camera Topology: Kaya KY-FGPII Predator II CoaXPress.

Order code

Product Data

Please use our frame grabber selector to find your preferred model.

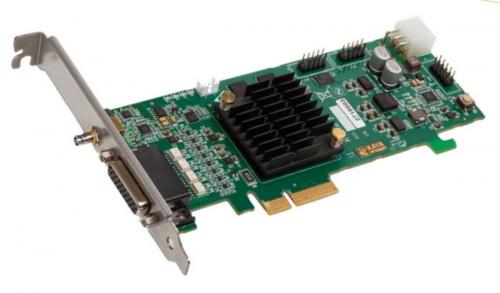

Kaya KY-FGPII Predator2 CoaXPress Frame Grabber FPGA board with 1x 12.5 Gbps channels supporting PoCXP and 12.5 Gbps PCIe interface.
Kaya KY-FGPII Predator II CoaXPress: 1x 6.25 Gbps channels supporting PoCXP.

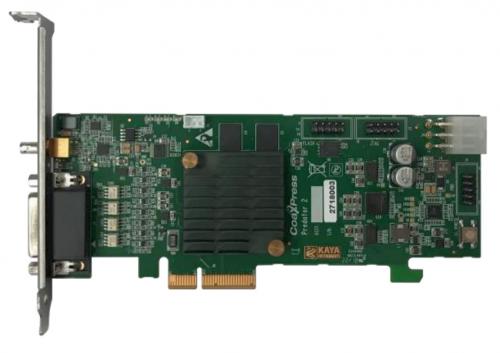

Kaya KY-FGPII Predator PCIe Gen2 x4 low profile PCIe card with 4 Gb image buffer.
Kaya KY-FGPII Predator II – PCIe Gen2 x4 low profile PCIe card.
