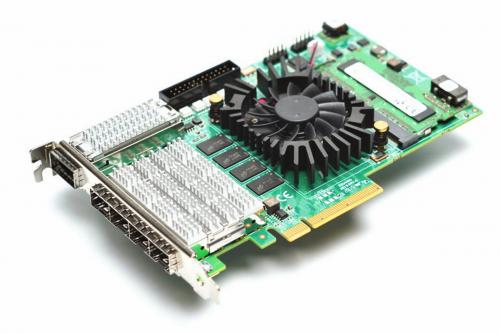

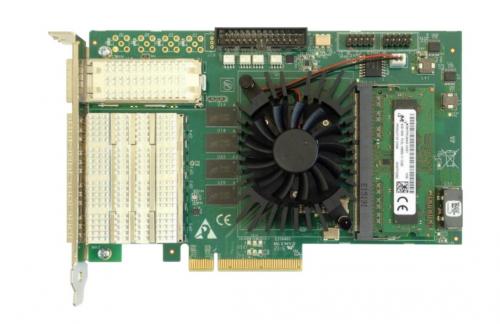

The Kaya Komodo Fiber series are economical, high performance frame-grabbers that can be configured for CXP-over-Fiber (CoF) and CameraLink High Speed X-Protocol (CLHS-X). These frame grabbers have either 4x SFP+ cages, or 4x SFP+ and 1x QSFP+ for optical transceivers.

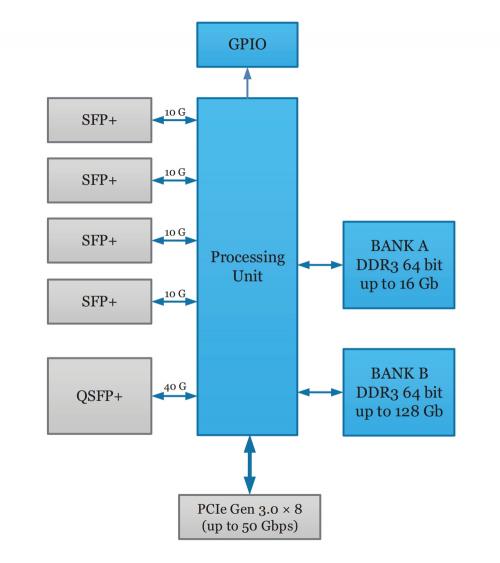

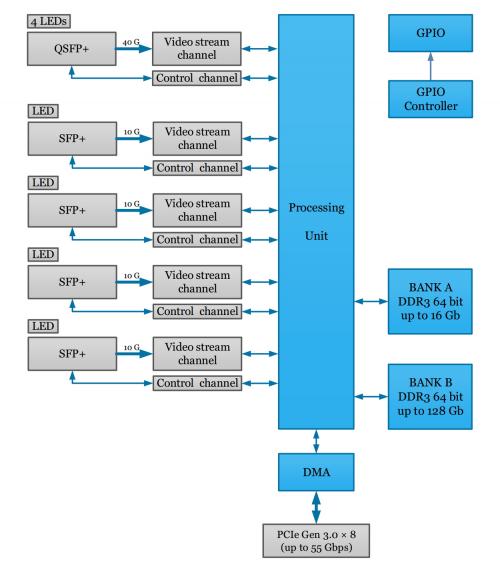

Komodo fiber frame grabbers have 144GB available DDR3 memory and 128 Gbps throughput. Latency is minimal as the QSFP+ and SFP+ interfaces are connected directly to FPGA device transceiver channels.
A high speed 8 lane PCIe Express 55 Gbps Gen 3 interface allows fast video transfers between optical links and computer memory, and is also available for camera control.

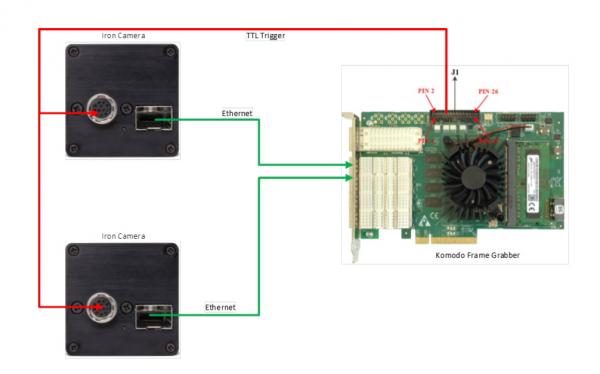

Connection to devices externally is via GPIO for machine control signals such as triggers, shaft encoders, exposure control and general I/O. Control is separate from video stream acquisition.
The Komodo Fiber Frame Grabber supports multiple modes of configuration and system topology. A few of these are presented in following diagrams.

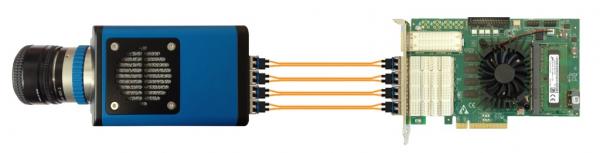

Single Camera Topology

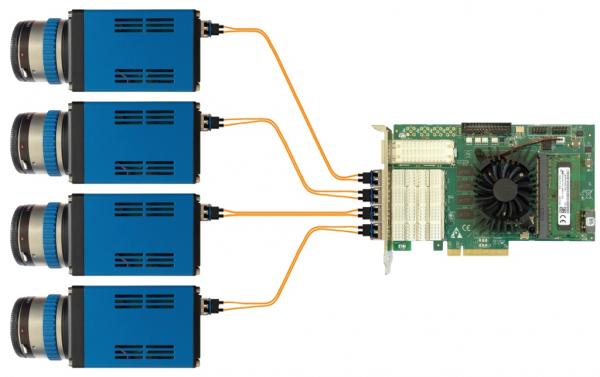

Quad Camera Topology
Please use our frame grabber selector to find your preferred model.
