KAYA Vision CoaXPress to CoaXPress-over-Fiber Converter | Transmit CXP over fiber | Electric Isolation | Reduced radiation and EMI | Highly secure, hard to tap

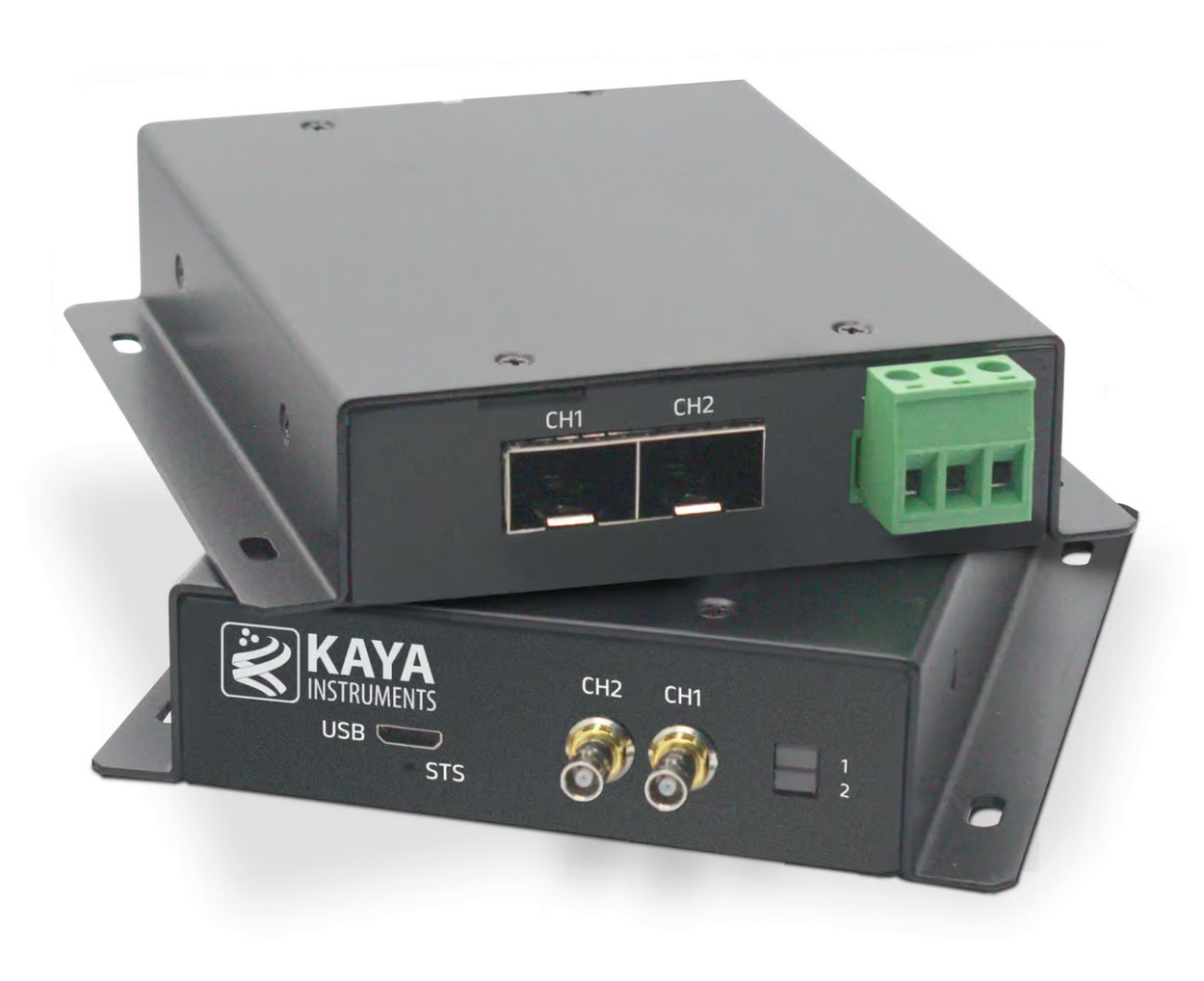

The KAYA Vision CoaXPress-to-CoaXPress over Fiber Dual Signal Converter, CXP-CXPoF, converts CoaXPress v2.x signals for transmission over fiber. The converter supports distances up to 80 km over single-mode fiber and up to 300 m over multi-mode fiber.
Fiber is electrically isolated, therefore it does not radiate and is not vulnerable to electromagnetic interference, while also eliminating problems related to grounding. Fiber cables are not easily tapped, enhancing transmission security. The CXP-to-CXPoF signal converter uses a standard CoaXPress over Fiber protocol, ensuring compatibility with standard fiber frame grabbers.
The CoaXPress (CXP) to CoaXPress over Fiber (CoF) Signal Converter utilizes standard Micro-BNCs converting CXP to CoaXPress over Fiber utilizing standard SFP+ that can support distances up to 80 km. The CXP to CoF Signal Converter can provide the camera power using the CoaXPress link with an external power supply. The Signal Converter is able to provide an uplink of up to 25 Gbps and downlink up to 41.6 Mbps. A Micro USB port is available for individual link and general information status and firmware updates.
Key Features
- CoaXPress v2.x support
- CoaXPress over fiber (CXPoF) support
- Support up to 12G of operation
- Power over CoaXPress with 13 W per link
- Fanless design
- Solves distance limitation of CoaXPress
- Downlink/Uplink of 25 Gbps and 41.6 Mbps respectively
- Data rates up to 12.5 Gbps per link
- Extension using Multi-Mode fiber up to 300 m
- Extension using Single-Mode fiber up to 80 km

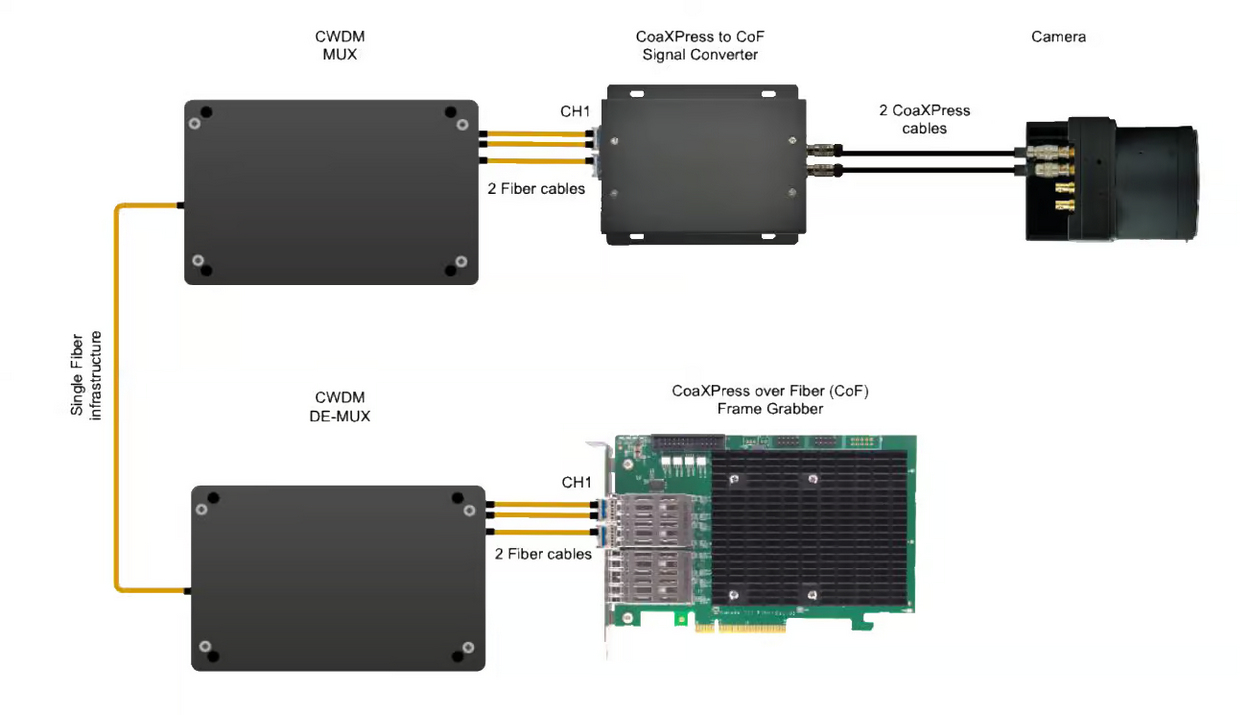

- CWDM support
- Small mechanical footprint
- Improved power connector
- Rugged design
- Bidirectional CoaXPress communication
- Flexible SFP+ module for fiber optic connection
- Micro-BNC connector for CoaXPress links
- Plug and Play, no configuration required
- Industrial -40 °C to +80 °C operation temperature
