Charge / Dump Control Systems

The Eagle Harbor Technologies (EHT) Charge / Dump Control is a standardized system that automates the charging, dumping, and grounding of high voltage systems. It can be operated in both local and remote mode. Front panel switches can operate charge and dump control for low voltage and low storage operation. The control can be operated remotely via fiber-optically isolated gates for higher voltage and energy storage applications. Control logic provides signals to turn on AC power, lift the charge/dump relays, and turn on HV power.

Control logic provides AC ON power, lifts the charge/dump relays, and provides HV ON power. The Charge / Dump Control is an essential element of laboratory high voltage safety. The relays, charge resistance, dump resistance, connectors, and enclosure design can all be customized to meet the requirements and specification of customers’ applications.

Charge / Dump 10 kV Relays (CD-10KV)

The CD-10kV is a charge / dump system intended for laboratory safety. Rated up to 10 kV, it allows safe charging and dumping of high energy capacitor banks. It is controlled by the CD-Control.

Charge / Dump Controller (CD-Control)

The CD-Control is a controller for the CD-10kV charge / dump system. It can be operated manually from the front panel, or remotely via fiber optic control/BNC TTL.

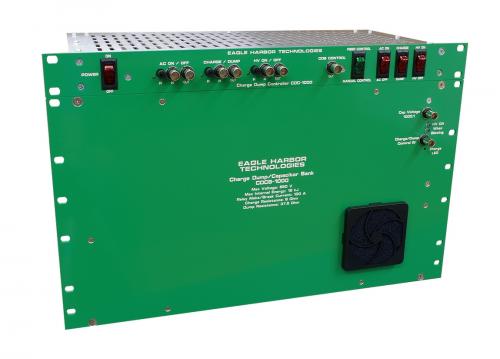

EHT CDCB-1000 charge / dump control bank with 8 Ω charge / 37.5 Ω dump resistance.
Charge / Dump Control Bank CDCB-1000: charge resistance 8 Ω and dump resistance 37.5 Ω.
