ISP-16 Short Pulse Differential Integrator

The ISP-16 contains 16 differential independent integrator channels, which are optimized to run for times less than 10 seconds.

The period of integration can range from sub microsecond and is optimized for periods up to 10 s. It is controlled by an external gate.

The figure of merit is 3E-8 Vs/s (RC*Drift Error/Run Time).

Features

Product Data

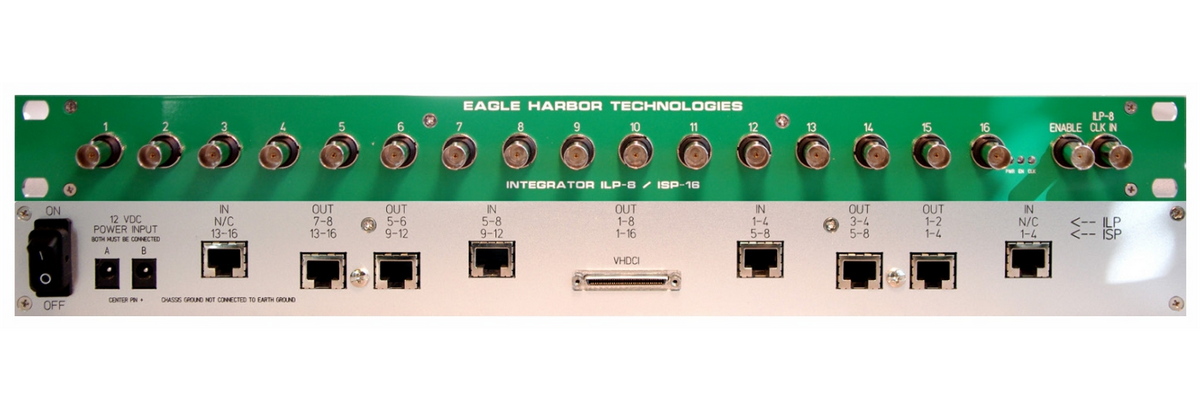

Front panel of Integrator ISP-16 equipped by 16 short pulse integrator BNC channels and 4x RJ45 outputs by Eagle Harbor Technologies.
Integrator Short Pulse ISP-16: front panel.
Back panel of Integrator ISP-16 equipped by 16 short pulse integrator BNC channels and 4x RJ45 inputs by Eagle Harbor Technologies.
Integrator Short Pulse ISP-16: back panel.
