BittWare 510T – dual Intel Arria 10 1150 GX – Sky Blue Microsystems GmbH

BittWare 510T FPGA accelerator with 2x Intel Arria 10

The BittWare 510T Compute Acceleration Card is an FPGA co-processor that delivers maximum performance-per-watt for intensive compute applications such as the datacenter.

In a GPU format, and with a 16-lane PCIe Gen 3 card, it is powered by dual Intel Arria 10 floating point FPGAs. Total sustained performance is up to 3 Tflops.

Included is a Board Support Package for the Intel Software Development Kit. This OpenCL SDK allows the user to program the card without knowledge of hardware-based tool flows otherwise necessary for FPGAs.

The 510T Compute Acceleration Card comes with a peak bandwidth of 290 Gbs. This external memory is configured as 8 independent banks of DDR4 and one Hybrid Memory Cube. This combination of DDR4s and ultra-fast HMC, plus on-chip memory bandwidth of 14.4 Tbs and PCIe Gen3 x16 Host Interface, unbinds memory intensive computing for unprecedented performance per watt.

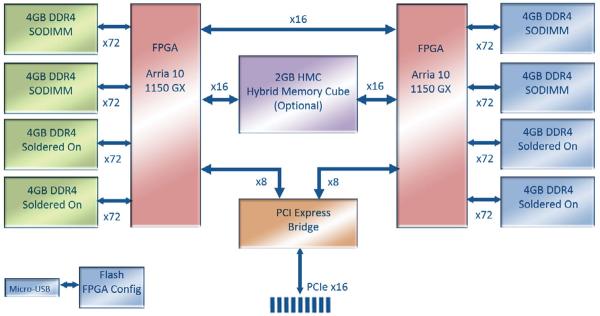

Hardware accelerator diagram of 510T Altera Arria 10 1150 GX showing description of electronic components of the board.
Hardware accelerator diagram: BittWare 510T with dual Intel Arria 10 FPGA.

Product Data

Please use our FPGA Board Selector to find your preferred model.

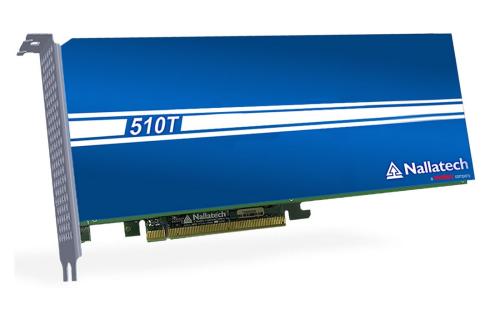

Efficient PCI express 3.0 x16 accelerator card BittWare 510T Intel Arria 10 with 3x Peak TFLOPS and passive cooling.
BittWare 510T double Intel Arria 10 FPGA accelerator card: with 3x Peak TFLOPS.

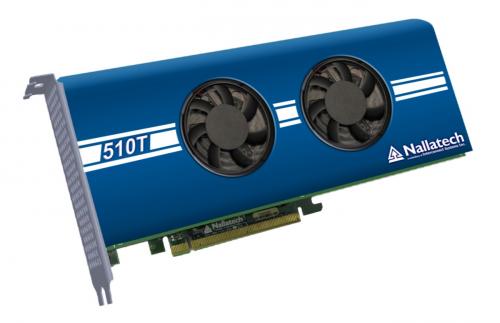

Impressive PCIe BittWare 510T 2x Intel Arria 10 accelerator card with high-speed 8x DDR4 memory and active 2x fans cooling.
BittWare 510T double Intel Arria 10 FPGA accelerator card: double-width PCI Express FPGA board with 8x DDR4.
Modern GPU BittWare 510T 2x Intel Arria 10 accelerator with PCI interface, Hybrid Memory Cube, and active 4x fans cooling.
BittWare 510T double Intel Arria 10 FPGA accelerator card: including Hybrid Memory Cube.
