BittWare 385A-SoC FPGA accelerator with Intel Arria 10

The BittWare 385-SoC is an ARM-based System-on-Chip FPGA accelerator board built on the Intel Arria 10 SX F34. It features dual QSFP ports, two banks of 4G DDR4 SDRAM external memory, and 8-Lane PCI-Express Gen 3 in a NIC form factor.

Low cost and power efficiency DSP cortex core embedded processor at teraflop rates serve real-time applications including high performance computing, image processing and network analytics.

The QSFP network ports support 40 GbE, 10 GbE, 1 GbE, Common Public Radio Interface and Fiber Channel, with speeds up to 40 Gbps for accelerated network computing. Compatible with OpenCL.

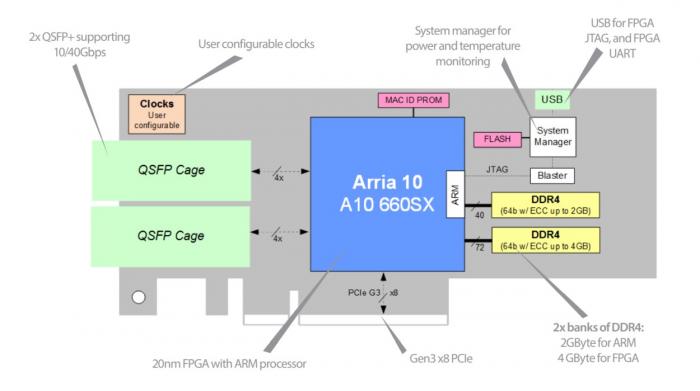

BittWare 385A-SoC Gen3 x8 PCIe FPGA Board hardware accelerator diagram with USB for FPGA JTAG, and FPGA UART.
Hardware accelerator diagram of BittWare 385A-SoC PCIe FPGA Board.

Product Data

Please use our FPGA Board Selector to find your preferred model.

BittWare 385A-SoC PCIe FPGA Board is a System-on-Chip FPGA with 20nm FPGA and ARM processor, dual QSFPs, and 2133MT per s DDR4.
BittWare 385A-SoC PCIe FPGA Board: 20nm FPGA with ARM processor.

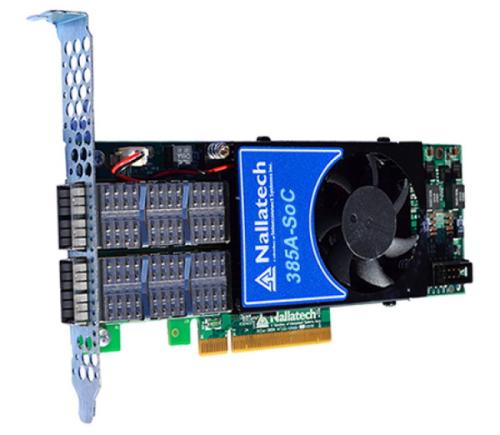

BittWare 385A-SoC with Intel Arria 10 SX F34 FPGA Accelerator, half-height PCI Express Card with 2x QSFP Ports and active cooling.

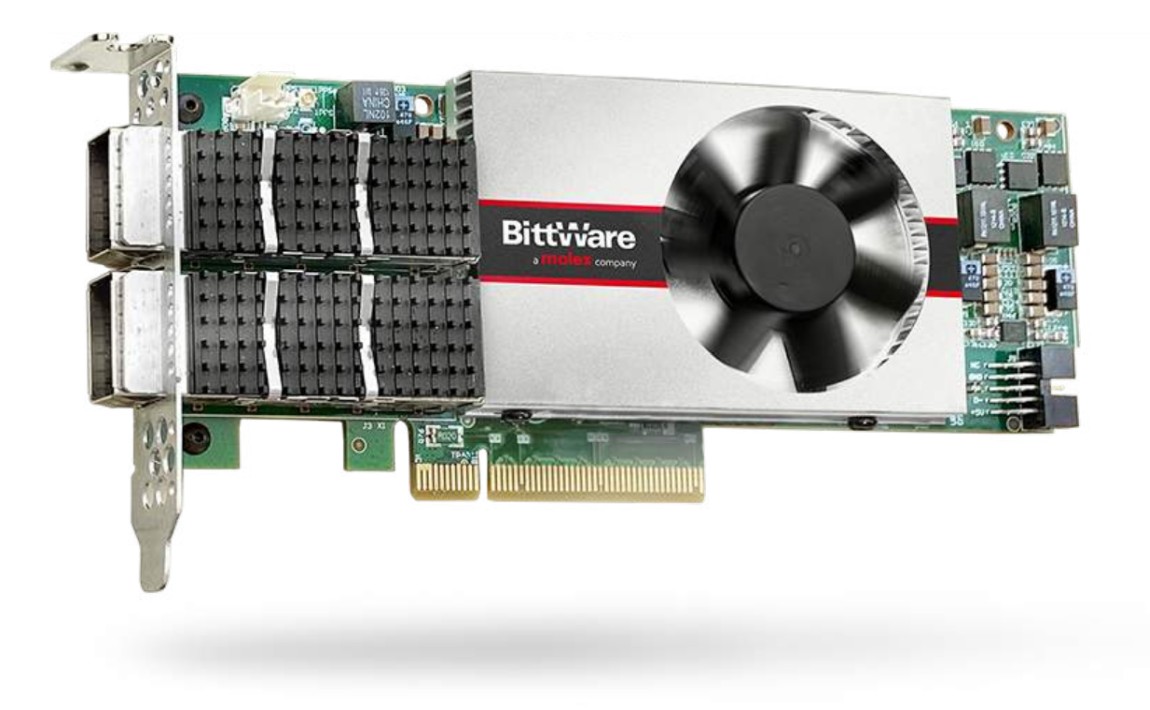

BittWare 385A-SoC Intel Arria 10 SX F34 FPGA accelerator card: half-length PCIe board with up to 40 Gbps QSFP network ports.
