BittWare TeraBox 4102S | 12x FPGAs | 40x QSFP | Xeon Scalable processors | PCIe Gen4

BittWare ’s TeraBox-4102S offers a 4U, 12-slot chassis supporting Intel’s latest 3rd Generation Xeon Scalable processors and PCIe Gen4. Configurations include up to 10 of BittWare ’s double-width cards using Achronix, Intel, or Xilinx FPGAs.

Users seeking maximum logic/memory density can choose the S7t-VG6 with the Achronix Speedster7t FPGA and high-bandwidth GDDR6 memory. Or choose the IA-840F, which features an Intel Agilex FPGA along with QSFP-DDs and yields an impressive 60x 100G – for a port density of 30 per rack unit! No matter which configuration you choose, you’re getting BittWare ’s installation, support, and comprehensive warranty.

Features

Chassis Specs

The TeraBox 4102S is a 4U FPGA server based on the SuperMicro 420GP-TNR chassis. This server offers two Intel 3rd Generation Xeon Scalable CPUs along with high PCIe slot density. With configurations of up to 10 of BittWare ’s large double-width cards, this server is an excellent premium option for the 4U form factor.

System Management

For system management, BittWare ’s FPGA cards are equipped with a Board Management Controller (BMC), which accepts PLDM commands. Use it along with BittWare ’s Software Development Kit to program the FPGA over USB, monitor card power and temperature, and re-program the onboard clocks. You’ll also be able to set points to shut down the card when it gets too hot, access JTAG, or access the software tools remotely.

The TeraBox Advantage

Choosing a TeraBox FPGA server means knowing you are getting a pre-configured and tested solution. This includes setup and installation of your FPGA cards and associated hardware, your choice of operating system, and development tools. Your TeraBox arrives ready for use – giving your team more time for development and deployment.

The TeraBox 4102S supports any of BittWare ’s Achronix, Intel, or Xilinx FPGA-based PCIe cards. Certified cards include:

TeraBox 4102S Server Configurations

Low

Medium

High

Premium

Ultra

Product Data

Please use our Server Selector to find your preferred model.

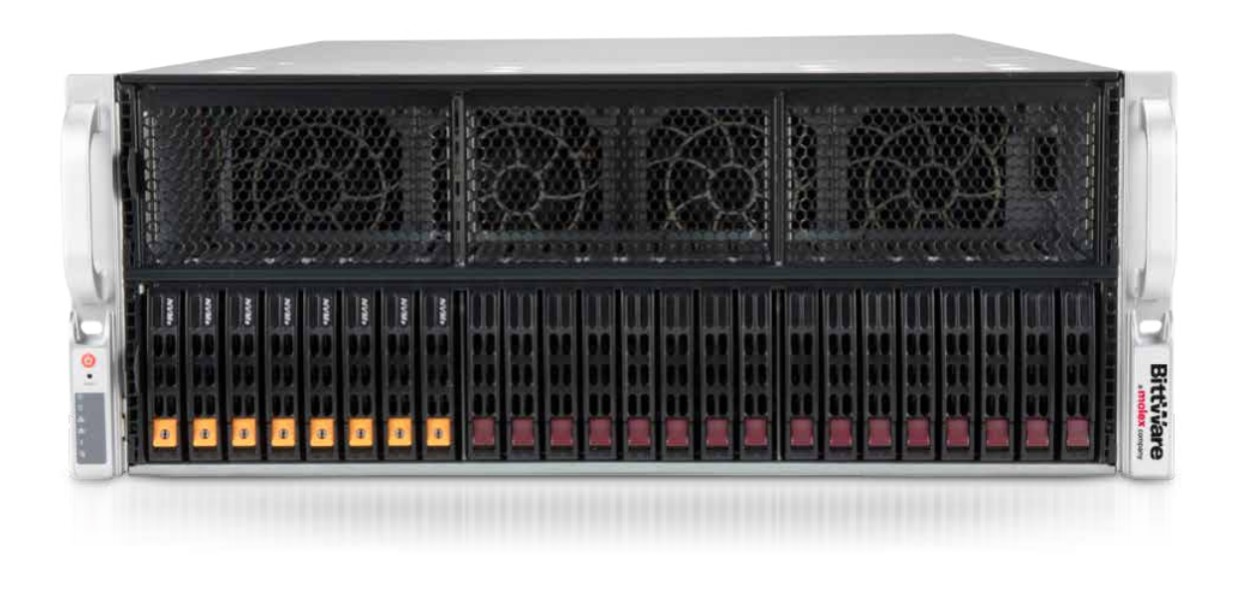

BittWare TeraBox 4102S 4U FPGA Server with 12 FPGAs and 40 QSFPs for 80x 100G or 320x 10/25G.
BittWare TeraBox 4102S FPGA Server with 12 FPGAs and 40 QSFPs.
BittWare TeraBox 4102S FPGA Server supports Up to 12 single or 10 double-width FPGA cards and Up to 24x hot-swap NVMe/SATA/SAS drive bays and equipped 2x Intel Xeon processors and Up to 32x ECC DDR4-3200 DIMMs.

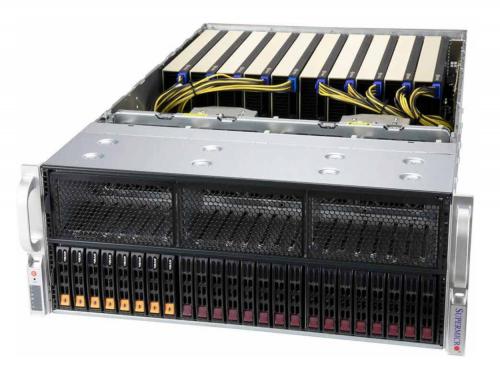

BittWare TeraBox 4102S 4U FPGA Server supports Up to 12 single-width or 10 double-width FPGA cards (inside) and Up to 24x hot-swap NVMe/SATA/SAS drive bays (front).
