BittWare 385A FPGA accelerator featuring Intel Arria 10

The BittWare 385A is a low profile 1.5 Teraflops FPGA accelerator board built on the Intel Arria 10 1150 GX. It features dual QSFP ports, 8GB DDR4 SDRAM external memory, and 8-Lane PCI-Express Gen 3.

OpenCl supports applications such as high performance computing, data analytics, and network acceleration.

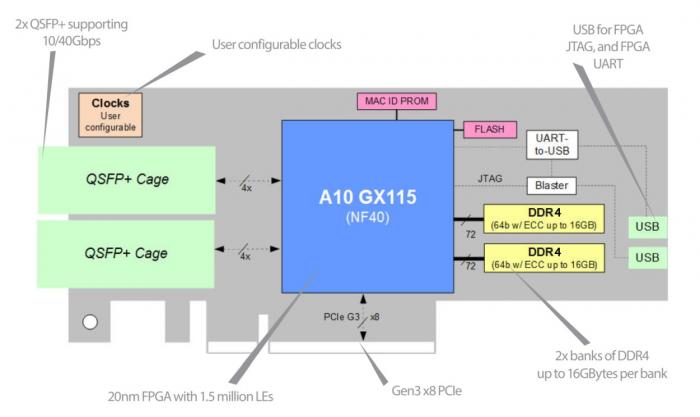

BittWare 385A Arria 10 Low Profile PCIe FPGA Board hardware accelerator diagram.
Hardware accelerator diagram of BittWare 385A PCIe FPGA Board.

Product Data

Please use our FPGA Board Selector to find your preferred model.

BittWare 385A PCIe FPGA Board is equipped with 2x banks of 4GB DDR4 SDRAM x 72 bits and 2133MT per second for each bank.
BittWare 385A Arria 10 PCIe FPGA Board: 2x banks of DDR4 SDRAM x 72 bits and 2133MT/s per bank.
FPGA BittWare 385A featuring with Intel Arria 10 1150 GX – half-length Accelerator Card with dual 1/10/40 GbE Ports, passive cooling.

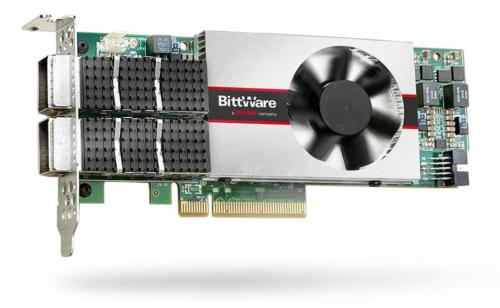

BittWare 385A with Intel Arria 10 1150 GX FPGA accelerator card: 2x 40GbE QSFP ports and 8 GB SDRAM.
