BittWare 520N Intel Stratix 10 FPGA accelerator

The BittWare 520N is a PCIe accelerating OpenCL-programmable board built using the Intel Stratix 10 F1760 NF43 FPGA with four 100G QSFP Ethernet ports and a PCIe Gen3 x16 host interface. With fast, independent optical I/O, establish dense, directly coupled FPGA clusters.

This scalable compute node is intended for intensive computing and latency-critical applications from Network Analysis to Machine Learning. Card designed to deliver up to 300W power consumption. With unique single precision floating point speed to 10 Tflops, each FPGA has four 8 GB banks of DDR4 external memory (64GB version also available).

With four optical 100/40/25/10G network ports, FPGA-to-FPGA can be scaled without funneling though PCIe. The serial IO array protocols operate at up to 100G.

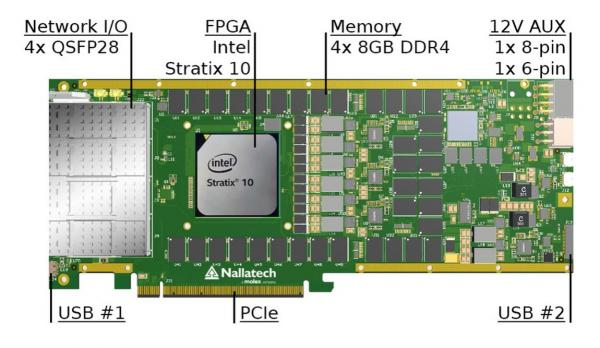

Hardware accelerator diagram of BittWare 520N with 10Tflops Intel Stratix 10 FPGAs showing description of electronic components of the board.
Hardware accelerator diagram: BittWare 520N with Intel Stratix 10 FPGA accelerator card.

Product Data

Please use our FPGA Board Selector to find your preferred model.

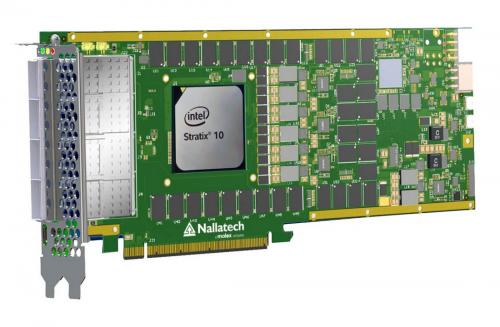

BittWare 520N Intel Stratix double-width PCI Express card with 4 banks of high-speed DDR4up to 64 GB using Field Programmable Gate Array – FPGA integrated circuit, passive cooling.

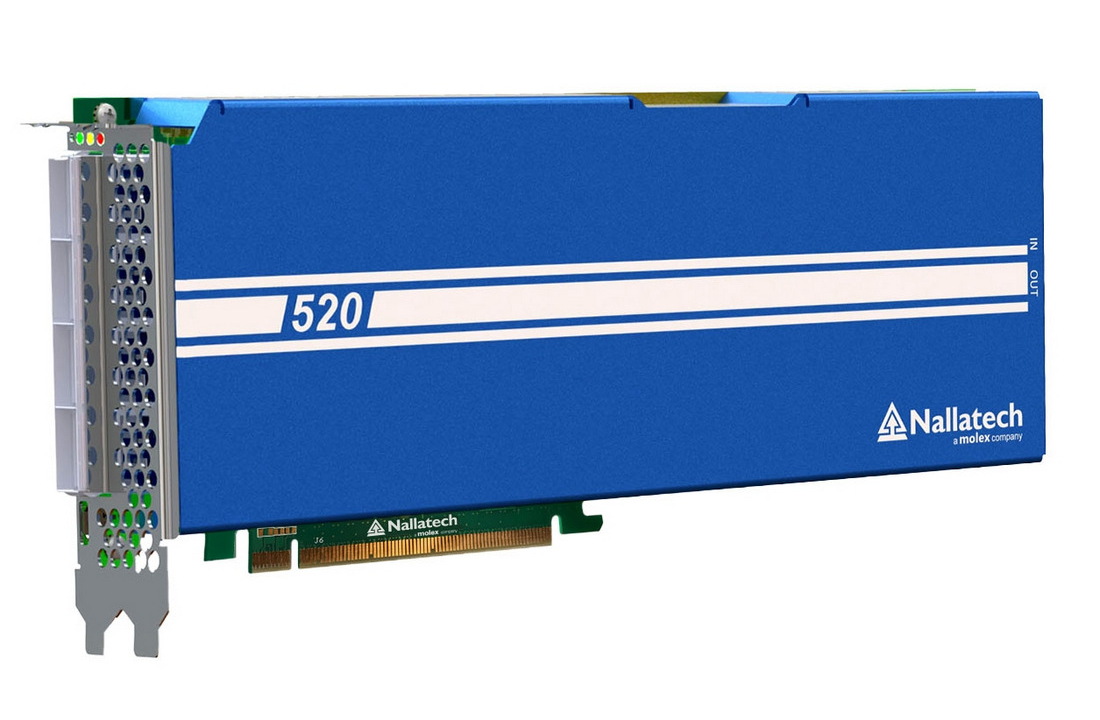

BittWare 520N Intel Stratix 10 FPGA accelerator card: double-width PCI Express OpenCL programmable FPGA board with 4x 8GB DDR4.
BittWare 520N accelerator board equipped with 4 optical Network protocol up to 100 G supporting Intel Stratix 10 F1760 NF43 fpga.
BittWare 520N Intel Stratix 10 FPGA accelerator card: 4 optical Network protocol 100/40/25/10G.
