BittWare 520C Intel Stratix 10 FPGA accelerator

The BittWare 520C is a PCIe accelerating OpenCL-programmable FPGA board built using the Intel Stratix 10 with F1760 NF43 package and a PCIe Gen3 x16 host interface. With fast, independent optical I/O, establish dense, directly coupled FPGA clusters.

This scalable compute node is intended for intensive computing and latency-critical applications from Network Analysis to Machine Learning. Card designed to deliver up to 300 W power consumption. With unique single precision floating point speed to 10 Tflops, each FPGA has four 8 GB banks of DDR4 external memory (64 GB version also available).

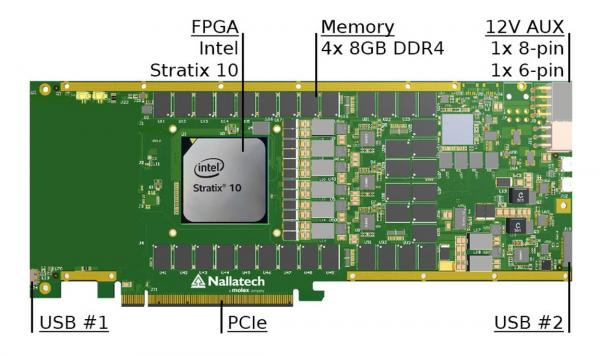

Hardware accelerator diagram of BittWare 520C with 10Tflops Intel Stratix 10 FPGAs showing description of electronic components of the board.
Hardware accelerator diagram: BittWare 520C with Intel Stratix 10 FPGA accelerator card.

Product Data

Please use our FPGA Board Selector to find your preferred model.

BittWare 520C Intel Stratix double-width PCI Express card with 4 banks of high-speed DDR4up to 64 GB using Field Programmable Gate Array – FPGA integrated circuit, passive cooling.

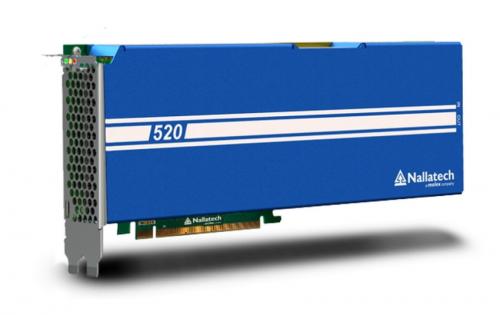

BittWare 520C Intel Stratix 10 FPGA accelerator card: double-width PCI Express OpenCL programmable FPGA board with 4x 8GB DDR4.

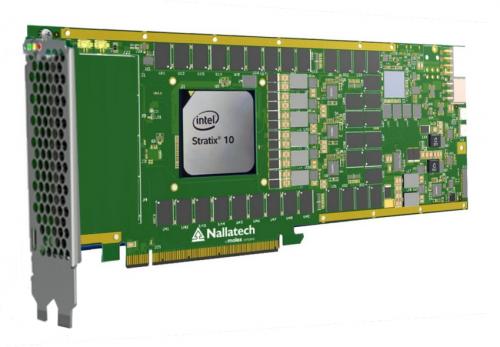

BittWare 520C accelerator board supporting Intel Stratix 10 F1760 NF43 fpga.
BittWare 520C FPGA accelerating card: Intel Stratix 10 F1760 NF43 fpga.
