Gidel Proc10S FPGA accelerator board | Intel Stratix 10 GX/SX FPGA | Total 400 Gbps transceivers in 4 cages | ARM Cortex-A53 MPCore processor

The Gidel Proc10S high performance scalable compute acceleration board is powered by an Intel Stratix 10 FPGA with up to 200 Kle, 260 GB DDR4 RAM, and an option for a SoC Quad-core 64-bit ARM Cortex-A53 MPCore processor. Peak single precision performance reaches 10 TFLOPS.

The Proc10S has a 16-lane PCIe Gen 3 host interface and 25 14.1 Gbs SERDES IO transceivers for ultra-fast connection to the FPGA. Abundant transceiver IO connectivity allows a total of 400 Gbs via 4x QSFP28 or a combination of 2x QSFP28, 2x SFP28 and RGMII/Gidel proprietary high-speed connector (PHS).

Gidel’s unique proprietary FPGA application development tools, integrated with Intel’s Quartus Prime Pro including QSys and DSP builder design tools, can be used with the Proc10S. The Gidel development tools suite simplifies the integration  of hardware and software and offers powerful IPs for on-FPGA real-time data management and data compression.

The Proc10S meets the performance requirements of HPC, storage, broadcast, medical, and test and measurement applications, and including

Product Data

Please use our FPGA Board Selector to find your preferred model.

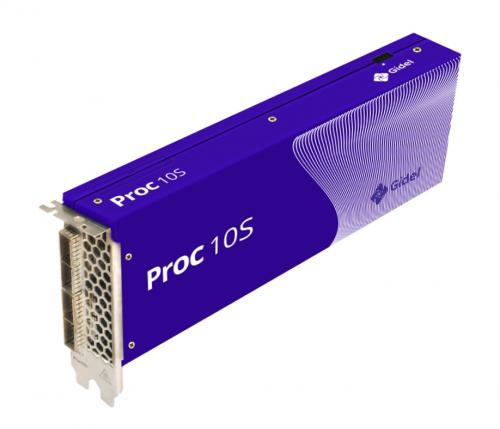

Gidel Proc10S FPGA accelerator board with SoC Quad-core 64-bit ARM Cortex-A53 MPCore processor and full-height, double-width, 3/4 length form factors.
Proc10S FPGA accelerator board with SoC Quad-core 64-bit ARM Cortex-A53 MPCore processor (1.5 GHz).

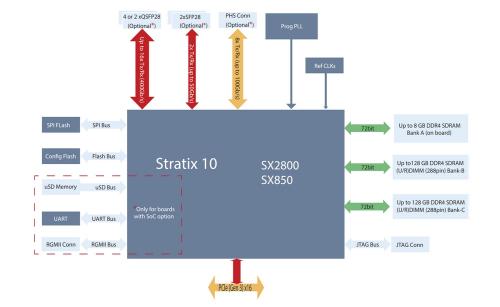

Gidel Proc10S accelerator system diagram showing key hardware components.
Hardware accelerator diagram of Proc10S:
* – Proc10S with 2x SFP28 and PHS can have a maximum of 2x QSFP.
RGMII option is available only with 4x QSFP replacing the PHS interface.
