BittWare TeraBox 1000S | Low cost 1U Server for a single BittWare FPGA | 8 QSFPs | Front Panel Access | Xeon, 64 GB DIMM | 2x 400 W Power Supply

This 1U rackmount server is the most economical of the BittWare TeraBox series, accommodating a single FPGA board.  All BittWare PCIe cards are compatible: Xilinx UltraScale+, Intel Arria 10, and Intel Stratix 10.

The server has 8 QSFP cages for 8x 100G or 32x 10/25G configurations, and occupies only a single rack space.

The host includes up to a Xeon E3-1200. 4x DIMMs allow 64 GB memory. Two 400W power supplies are provided for redundancy.

The TeraBox 1000S supports a single- or dual-wide BittWare PCIe FPGA board. Board specs can be extended to 512 GBytes of DDR4. UltraScale+ boards feature SEP or SlimSAS connectors, which can be used with an adapter for an additional 4x 100 Gbs.

Development Support

BittWare’s FPGA boards are equipped with a Board Management Controller (BMC), which accepts IPMI 2.0 commands. BittWare’s BittWorks II Toolkit is used to program the FPGA over USB, monitor board power and temperature, and reprogram the onboard clocks. You can also to set points to shut down the board if it overheats, to access JTAG, and for remote access of the software tools.

Your TeraBox arrives ready-to-use

Your TeraBox FPGA server is delivered pre-configured and tested, including setup and installation of your FPGA boards and associated hardware, your choice of operating system, and the development tools.

Server Specifications

SuperMicro SuperChassis 515-R407

SuperMicro X11SSW-4TF motherboard

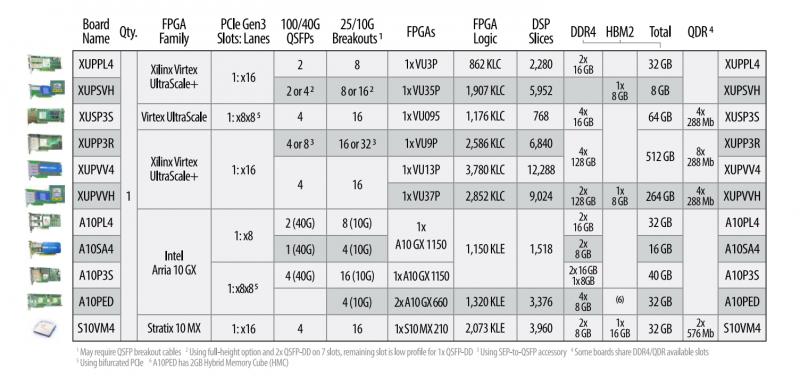

FPGA resources chart shows total BittWare FPGA units on a server which maximum amount varies depending on several configuration.
BittWare FPGA chart shows total FPGA resources on a server.

Product Data

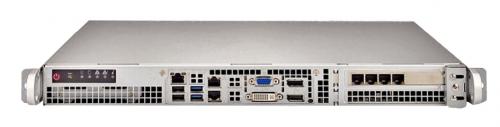

TeraBox 1000S by BittWare is featured with 8 QSFP cages for 8x 100G or 32x 10/25G configurations.

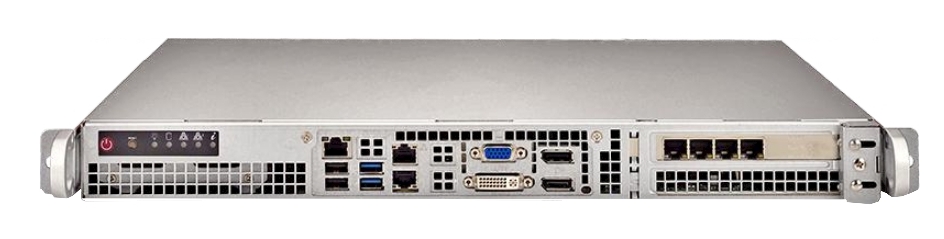

BittWare TeraBox 1000S economical 1U rackmount server with 1x FPGA board.

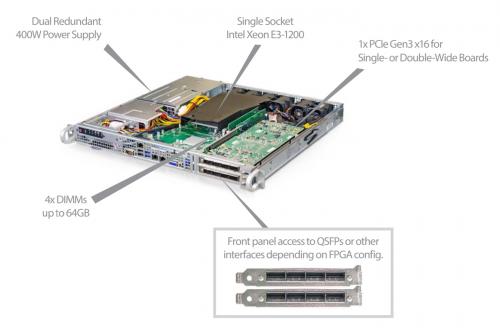

Internal view of TeraBox 1000S by BittWare showing key components Xeon E3-1200 v6/v5, Intel C236, 4x ECC DDR4 DIMM, 1x PCIe Gen3 x16 with front panel access, 6x SATA 6 Gb/s, Intel C236 RAID, Dual Platinum 400W.
Key features of TeraBox 1000S.
BittWorks II Toolkit include BwMonitor app provides a view into the board management capabilities like live board power and temperature display of BittWare hardware.
BwMonitor is a part of the BittWorks II Toolkit: provides live board power and temperature display of BittWare hardware.
