BittWare TeraBox 1100L | 1U Server for a single BittWare XUPP3R with Xilinx UltraScale+ FPGA | 4 QSFP plus 20 SFP | Front Panel Access | Xeon, 64 GB DIMM | 2x 800 W Power Supply

This 1U rackmount server from the BittWare TeraBox series accomodates a single BittWare XUPP3R board with a Xilinx UltraScale+ Virtex VU9P FPGA.

4x 100/40/25/10G QSFPs plus 20x 10G SFPs are connected on a custom  expansion board to the PCIe FPGA board for fast network acceleration.

The high density BittWare TeraBox 1100L in a 1U chassis occupies only a single rack space, and all ports are accessible from the front panel.

The host includes up to a Xeon E5-2600. 4x DIMMs allow 64 GB memory. Two 800W power supplies are provided for redundancy.

The TeraBox 1100L custom front panel has motherboard management interfaces and allows access to the GbE ports on the BittWare board and the expansion board. An embedded management system, accessible via command line, allows you to configure, manage, and monitor the expansion board and its interfaces.

Development Support

BittWare’s FPGA boards are equipped with a Board Management Controller (BMC), which accepts IPMI 2.0 commands. BittWare’s BittWorks II Toolkit is used to program the FPGA over USB, monitor board power and temperature, and reprogram the onboard clocks. You can also to set points to shut down the board if it overheats, to access JTAG, and for remote access of the software tools.

Your TeraBox arrives ready-to-use

Your TeraBox FPGA server is delivered pre-configured and tested, including setup and installation of your FPGA boards and associated hardware, your choice of operating system, and the development tools.

Server Specifications

SuperMicro SuperChassis 515-R407

Mini ITX motherboard

BittWare expansion board

BittWare XUPP3R PCIe board

Product Data

Please use our Server Selector to find your preferred model.

TeraBox 1100L 1U rack mount server by BittWare works with 1x XUPP3R FPGA board with Xilinx UltraScale and Virtex VU9P.

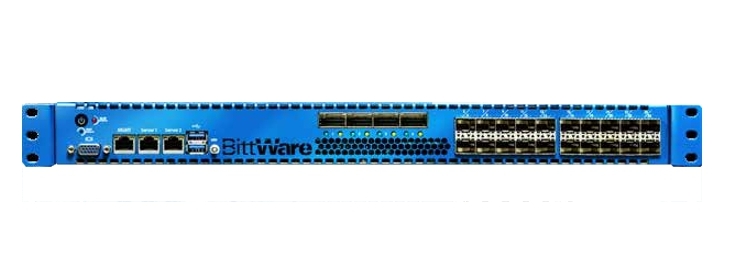

BittWare TeraBox 1100L accommodates a single XUPP3R board with a Xilinx UltraScale+ Virtex VU9P.

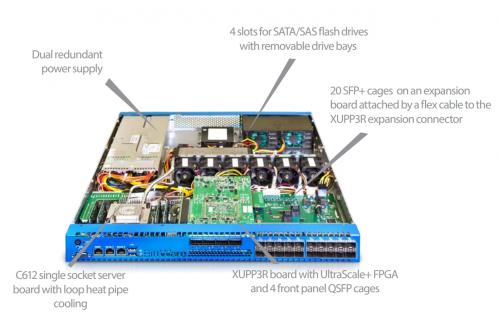

Internal view of TeraBox 1100L by BittWare showing key components: Xeon E5-2600 v4, Intel C612, 4x ECC DDR4 DIMMs, Dual Redundant 800W, 4 x SATA3 6Gb/s, 1x PCIe Gen3 x16 with front panel access.
Key features of TeraBox 1100L.
BittWorks II Toolkit include BwMonitor app provides a view into the board management capabilities like live board power and temperature display of BittWare hardware.
BwMonitor is a part of the BittWorks II Toolkit: provides live board power and temperature display of BittWare hardware.
