BittWare 520N-MX | Ultra high-speed network interface | Intel Stratix 10 MX FPGA | 4x 100GbE | 512 GBps memory bandwidth | 6 TFLOPS processing | DDR4, QDR-II+, Intel Optane option | OpenCL

The BittWare 520N-MX accelerator board built with an Intel Stratix 10 MX FPGA is well suited to 100G line rate network packet processing and compute-intensive data center applications that demand high memory bandwidths.

This HBM2-Enabled FPGA Network Accelerator Card is PCIe conformant, and is programmable using OpenCL.

The Stratix 10 MX avoids I/O bottlenecks with up to two million logic elements directly connected to multiple banks of in-package High Bandwidth Memory (HBM2).

A novel, flexible memory architecture allows a broad range of memory types to be coupled to the FPGA fabric: QDR-II+ SRAM, DDR4 SDRAM, Intel Optane 3D-XPoint and NVMe SSDs.

Ultra High Speed Networking Interface FPGA

Intel FPGA OpenCL Software Development Kit (SDK)

Hardware Description Language (HDL)

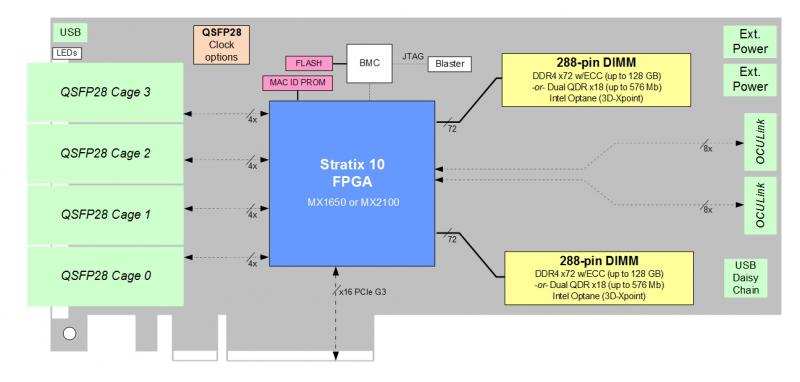

Bittware 520N-MX accelerator diagram showing its hardware elements.
Hardware accelerator diagram: Bittware 520N-MX is ideal for 100G line rate network packet processing.

Product Data

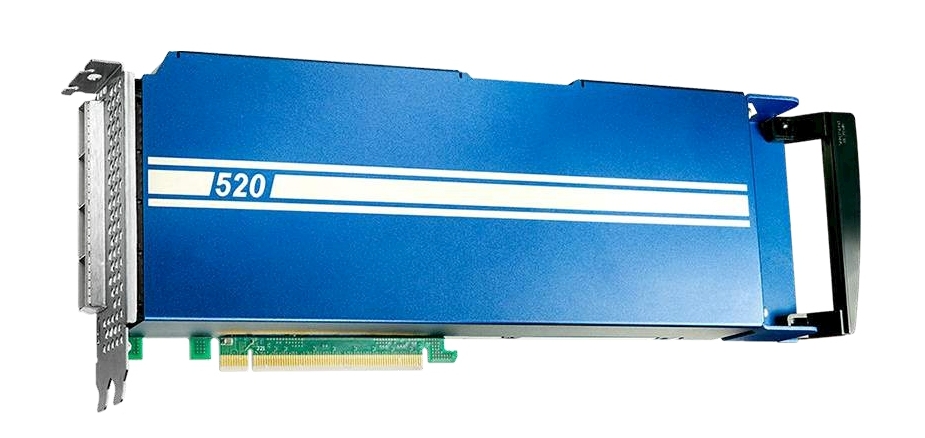

520N-MX PCIe card by Bittware is equipped with Intel Stratix 10 FPGA MX1650 or 2100.
Bittware 520N-MX with Intel Stratix 10 MX1650 or MX 2100 inside.

For more information, please call +49 (0) 89 – 780297 0, or email us at info@skyblue.de, or fill out this form:
