BittWare TeraBox 1501B/1502B | 1U Data Center Server | AMD EPYC 9004 series or Intel 4th Gen Xeon CPU | Achronix, Intel, and Xilinx FPGA-based boards

The BittWare TeraBox 1500B Family of extreme density FPGA Servers offers a choice of AMD EPYC 9004 series or Intel 4th Gen Xeon CPUs.

At the extreme of FPGA server density, the TeraBox 1501B/1502B gives the highest level of compute and network capability in a 1U chassis. The TeraBox 1501B and 1502B servers provide almost twice the density of the typical 4U server and the power of 4 of our largest Achronix Speedster7t, Intel Agilex or Xilinx FPGAs. These innovative products support PCIe Gen5 and feature an AMD EPYC or Intel Xeon processor in a standard rack depth chassis.

Key Features

Up to 12x 400G, 48x 100G or 96x 10/25G
PCIe Gen5 with support for CXL
up to 4 FPGAs in a standard-depth 1U server
Processor: AMD EPYC 9004 Series Processor or Intel 4th Gen Xeon Processor
Ethernet: 2 RJ45 (10GbE) by Intel® X550-AT2, 2x RJ45 (10GbE) by Broadcom BCM57416, 2x RJ45 (1GbE) by Intel® i210
Memory: Up to 8 DDR5 DIMM slots
Storage: Up to 2x M.2 (PCIe5 x4)
Slots: 4x front panel PCIe Gen 5 x16
Power Supply: 2000W 110/220 50/60HZ auto switching PSU (Dual 1300W power supplies option is available)

The TeraBox 1501B/1502B are ready for Gen5-equipped cards with twice the bandwidth per lane of Gen4.

BittWare FPGA Cards

The TeraBox 1501B/1502B supports up to four dual-width BittWare PCIe FPGA cards. Choose from a variety of cards based on the Speedster 7t, Intel Agilex, or Xilinx FPGAs. System specs will vary greatly, depending on the FPGA card you select. For example, with four BittWare Intel Agilex PCIe cards, which support up to 3x 400GbE interfaces each, the chassis can support as many as 12x 400GbE interfaces. With four Agilex cards using breakout cables, each chassis supports 48x 100GbE.

BittWare 1U Server

The TeraBox 1500B family servers are exclusive to BittWare and are the ideal platform to unleash the energy-efficient acceleration of BittWare’s FPGA cards. This FPGA-optimized 1U server delivers unrivaled performance density and value for a range of compute-intensive applications, including machine learning.

The server is assembled in the USA, is TAA compliant, and offers a 3-year warranty.

The TeraBox Advantage

Choosing a TeraBox FPGA server means knowing you are getting a pre-configured and tested solution. This includes setup and installation of your FPGA cards and associated hardware, your choice of operating system, and development tools. Your TeraBox arrives ready for use—giving your team more time for development and deployment.

Server Configurations - TeraBox 1501B

Low

(1) AMD EPYC 9124 (3.0 GHz, 16C/32T) 64MB Cache Processor
64GB DDR5 4800MHz (8x 8GB)
(2) 1 TB M.2 (RAID1)
2000W Fixed PSU *

Medium

(1) AMD EPYC 9354 (3.2 GHz, 32C/64T Processor) 256MB Cache Processor
128GB DDR5 4800MHz (8x 16GB)
(2) 1TB M.2 (RAID1)
2000W Fixed PSU *

High

(1) AMD EPYC 9554 (3.1 GHz, 64C/128T) 256MB Cache Processor
256GB DDR5 4800MHz (8x 32GB)
(2) 1TB M.2 (RAID1)
2000W Fixed PSU *

Ultra

(1) AMD EPYC 9654 (2.4 GHz, 96C/192T) 384MB Cache Processor
1TB DDR5 4800MHz (8x 128GB)
(2) 1TB M.2 (RAID1)
2000W Fixed PSU *

*Option for 1300W Redundant Power Supplies

Server Configurations - TeraBox 1502B

Low

(1) Intel Xeon 4410Y (2.0 GHz, 12C/24T) 30MB Cache Processor
64GB DDR5 4800MHz (8x 8GB)
(2) 1 TB M.2 (RAID1)
2000W Fixed PSU *

Medium

(1) Intel Xeon 5415+ (2.9 GHz, 8C/16T) 22.5MB Cache Processor
128GB DDR5 4800MHz (8x 16GB)
(2) 1TB M.2 (RAID1)
2000W Fixed PSU *

High

(1) Intel Xeon 6444Y (3.6 GHz, 16C/32T) 45MB Cache Processor
256GB DDR5 4800MHz (8x 32GB)
(2) 1TB M.2 (RAID1)
2000W Fixed PSU *

Ultra

(1) Intel Xeon 8480+ (2.0 GHz, 56C/112T) 105MB Cache Processor
1TB DDR5 4800MHz (8x 128GB)
(2) 1TB M.2 (RAID1)
2000W Fixed PSU *

*Option for 1300W Redundant Power Supplies

Product Data

Specifications: BittWare TeraBox 1501B Extreme Density 1U FPGA Server
Specifications: BittWare TeraBox 1502B Extreme Density 1U FPGA Server

Please use our Server Selector to find your preferred model.

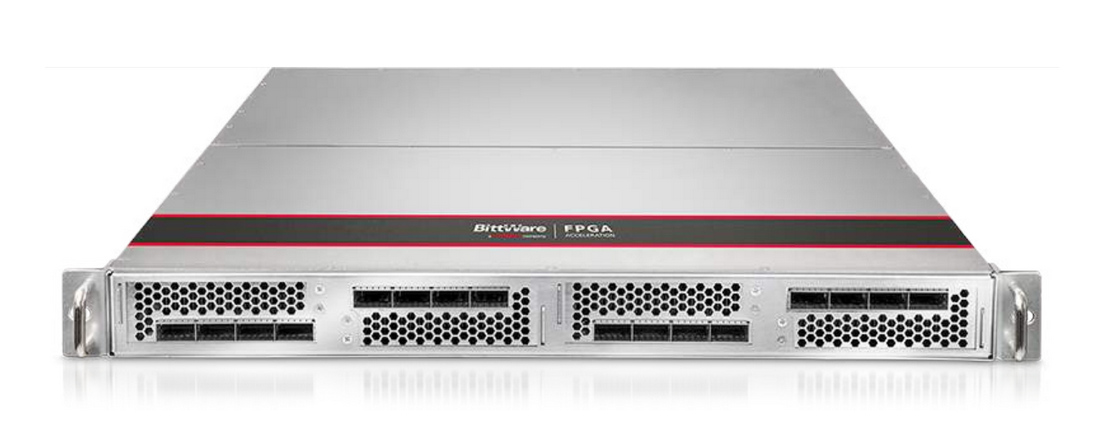

BittWare TeraBox 1501B and 1502B Extreme Density FPGA Server, 1U, 4 card, PCIe Gen5 x16, Intel 4th Gen Xeon Processor or AMD EPYC 9004 Series Processor, Up to 8 DDR5 DIMM slots. — BittWare TeraBox 1501B / 1502B 1U Extreme Density 4xFPGA Server features PCIe Gen5 x16 and Intel 4th Gen Xeon Processor or AMD EPYC 9004 Series Processor.

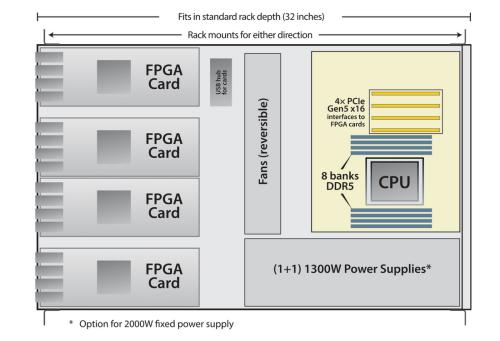

BittWare TeraBox 1501B and 1502B 1U Extreme Density 4xFPGA Server accelerator diagram showing key hardware feature: 1U depth, Intel 4th Gen Xeon Processor or AMD EPYC 9004 Series Processor, 2 RJ45 10GbE by Intel X550-AT2, Up to 8 DDR5 DIMM slots, up to 2x M.2 PCIe5 x4, 4x front panel PCIe Gen5 x16, 1 and 1 AC 1300W, 110 or 220V. — Hardware accelerator diagram TeraBox 1501B and 1502B Extreme Density FPGA Server.
