BittWare TeraBox 2000D, 8x FPGA, 24x QSFP – Sky Blue Microsystems GmbH

BittWare TeraBox 2000D | High Density 2U Server | 8x BittWare FPGAs | 24 QSFPs | DellEMC Datacenter chassis | 1.6 TB connected DDR4 | Two Xeon CPUs

The BittWare TeraBox 2000D is a 2U FPGA server based on the Dell PowerEdge R740 chassis. This server includes two Intel Xeon Scalable CPUs and high PCIe slot density. Dell ProSupport is available.

The TeraBox 2000D supports the full range of BittWare Intel- and Xilinx-based FPGA boards to provide high-density FPGA resources. Configuration options include

  1. up to eight low-profile boards, such as the A10SA4 with Intel Arria 10 GX FPGA, or
  2. three double-width boards. For example, three of BittWare’s large double-width boards using Xilinx Virtex UltraScale+ or Intel Stratix 10 FPGAs. Users seeking maximum logic/memory density can choose the XUPVV4 for 11M logic cells and 1.5TB FPGA-attached DDR4 memory.

Development Support

BittWare’s FPGA boards are equipped with a Board Management Controller (BMC), which accepts IPMI 2.0 commands. BittWare’s BittWorks II Toolkit is used to program the FPGA over USB, monitor board power and temperature, and reprogram the onboard clocks. You can also to set points to shut down the board if it overheats, to access JTAG, and for remote access of the software tools.

Your TeraBox arrives ready-to-use

Your TeraBox FPGA server is delivered pre-configured and tested, including setup and installation of your FPGA boards and associated hardware, your choice of operating system, and the development tools.

Server Specifications

Dell PowerEdge R740 2U rackmount chassis

Motherboard

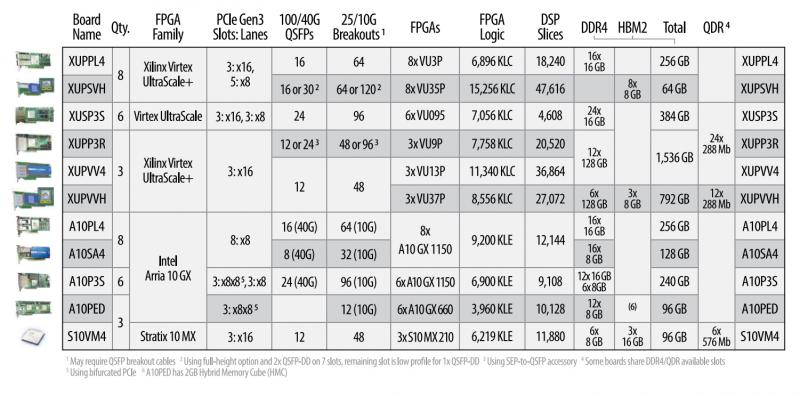

Resources chart shows maximum amount of BittWare FPGA units varies depending on several configuration of a server.
BittWare FPGA chart shows total FPGA resources on a server.

Product Data

Please use our Server Selector to find your preferred model.

TeraBox 2000D by BittWare is 2U FPGA server based on Dell EMC PowerEdge R740 chassis with Dell ProSupport.

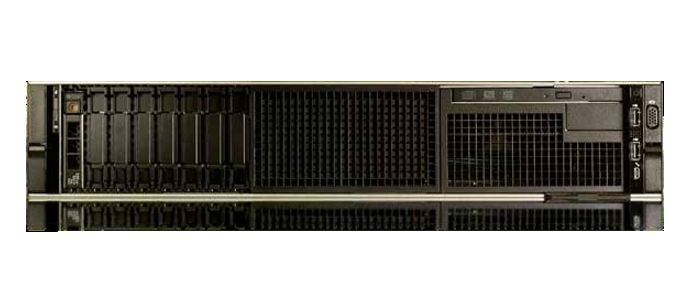

BittWare TeraBox 2000D is 2U EMC FPGA data center server based on Dell PowerEdge R740 chassis.

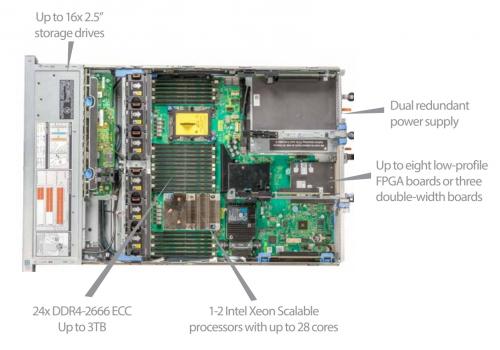

Internal view of 2000D by BittWare showing key components 1-2 Intel Xeon, Intel C620, 24x ECC DDR4-2666 DIMMs, 8x PCIe Gen3 x8, up to 3x PCIe Gen3 x16, 16x 2.5” or 8x 3.5”, Titanium 750W, Platinum up to 2000W.
Key features of TeraBox 2000D 2U FPGA Server.
TeraBox 2000D by BittWare supports up to 3x doublewide or 8x low profile FPGA boards and is equipped with 1-2 Intel Xeon processors with up to 28 cores.

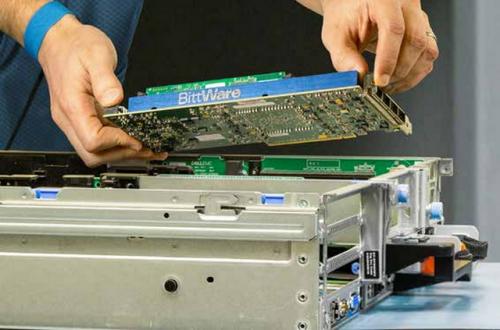

BittWare TeraBox 2000D with up to 3x doublewide or 8x low profile FPGA boards configuration.
BittWorks II Toolkit include BwMonitor app provides a view into the board management capabilities like live board power and temperature display of BittWare hardware.
BwMonitor is a part of the BittWorks II Toolkit: provides live board power and temperature display of BittWare hardware.
