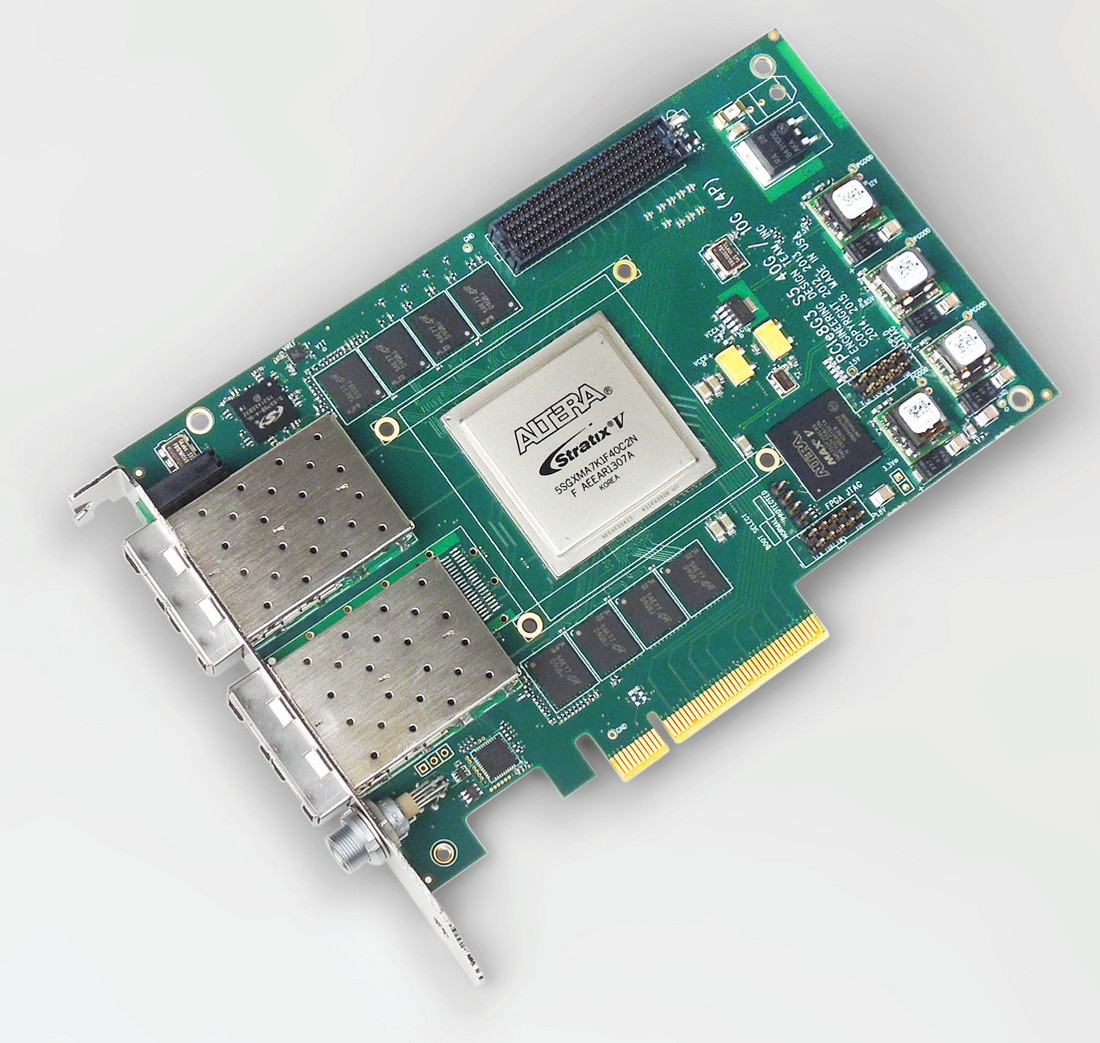

EDT PCIe8g3 S5-10G with Intel Stratix V FPGA/DMA card

The EDT PCIe8g3 S5-10G supports PCI Express – PCIe, Gen3 - x8 and has four 10G SFP+ and 1 – 10 GbE or OC3/12/48/192 (STM1/4/16/64), or OTU1/2/2e/2f. The ports link to the SERDES user-interface for serialization and deserialization, and clock recovery and its own 10 – 210 MHz programmable reference clock. The UI FPGA is a Intel Stratix V GX (A3 or A9) with access to two DDR3 DRAM, 4 GB 64-bit, that is also a buffer. The PCIe FPGA provides up to 16 independent DMA channels via EDT FPGA configuration files. An optional Lemo supports 1 pps or IRIG-B) time codes, with either DB9 or BNC. Configuration files support 1 and 10 GbE at PHY, and OC3/12/48/192 and OTU1/2/2e/2f – raw, framed, framed and descramble.

Product Data

Please use our FPGA Board Selector to find your preferred model.

EDT PCIe8g3 S5-10G supporting Intel Stratix V FPGA card equipped with programmable 10–210 MHz clock recovery and 4 GB DDR3.
EDT PCIe8g3 S5-10G FPGA card with Intel Stratix V: four 10G SFP/+s ports and 16x DMA channels.
