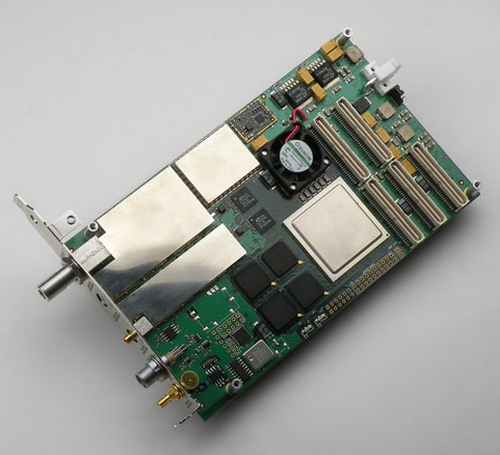

EDT SRXL2 Mezzanine board with IF / L-band signals

The EDT SRXL2 is a mezzanine board with L-band inputs of 900 to 2250 MHz, IF inputs of 160, 140, 70, or 21.4 MHz, and a direct sampling path for IF inputs below 90 MHz. The L-band and IF can be input simultaneously. The Xilinx Virtex 4 XC4VSX55 FPGA can perform signal processing or serve as a configurable switch matrix to route data to four digital down-converter Graychips (GC4016).The card includes a TCXO 10 MHz reference clock which can be set for internal or external use. This board can be supplied with either a PCIe8 LX or PCI GS main board for bus connectivity and additional FPGA resources.

Product Data

Programmable EDT SRXL2 Mezzanine for PCI / PCIe for L-band and IF signals equipped with Xilinx Virtex 4 XC4VSX55 FPGA and Graychips (GC4016) from EDT.
SRXL2 Mezzanine board for PCI / PCIe: L-band / IF signals with Xilinx Virtex 4 XC4VSX55 FPGA and Graychips (GC4016).
