Bittware 520R-MX | Compute Acceleration of High-Speed Sensor Data | Stratix 10 MX2100 | Integrated HBM2 | 48 Optical Receivers for 480 Gbps

The Bittware 520R-MX FPGA PCIe Accelerator Board is optimized for sensor processing applications with massive real-time data ingest requirements.

The FPGA is a Stratix 10 MX2100 with integrated HBM2 memory and 48 optical links for 480 Gbps Optical Input high-speed input to the FPGA, and OCuLink connectors allow for expansion.

The 520R-MX is a variant of the 520N-MX with optical receivers instead of QSFPs.

The 520R-MX features a Board Management Controller (BMC) for advanced system monitoring and control, which greatly simplifies platform integration and management.

Features

Order Your Cards in a link to selector TeraBox™ FPGA Server

Get extended warranty support and save time with a pre-integrated solution!

Product Data

Please use our FPGA Board Selector to find your preferred model.

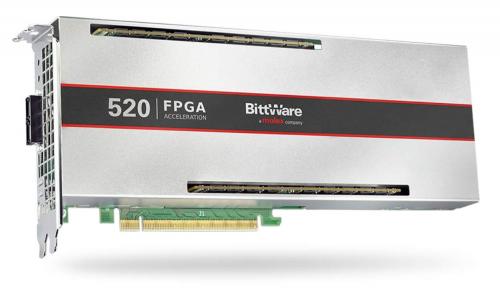

BittWare 520R-MX accelerator with 8 GBytes on-chip 410 GB/s High Bandwidth Memory HBM2 DRAM and 2 Gbit On-board Flash memory for booting FPGA.
BittWare 520R-MX with 8 GBytes on-chip 410 GB/s High Bandwidth Memory HBM2 DRAM.

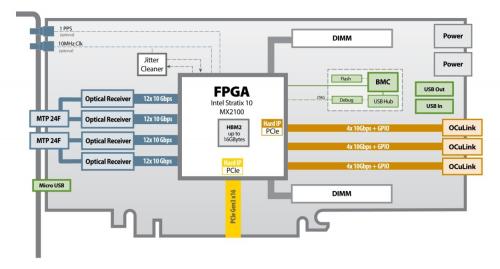

BittWare 520R-MX accelerator diagram showing hardware components is equipped optical Input high-speed input and OCuLink connectors allow for expansion.
Hardware accelerator diagram: BittWare 520R-MX with optical Input high-speed input and OCuLink connectors allow for expansion.
