NVIDIA A100 PCIe – Sky Blue Microsystems GmbH

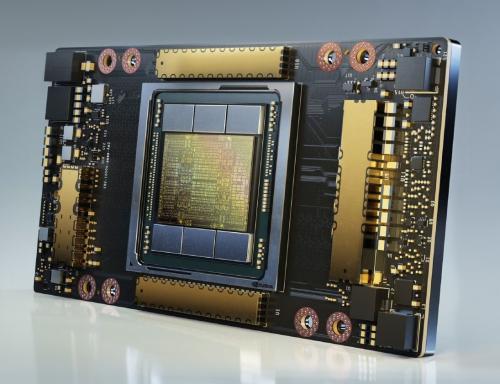

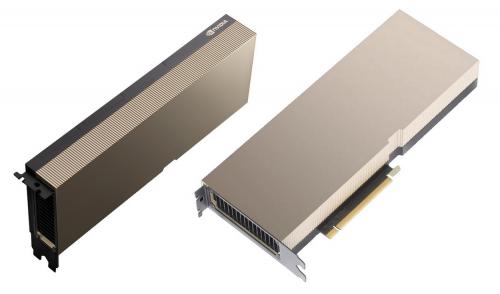

NVIDIA A100 PCIe Board

NVIDIA® Ampere A100 Tensor Core GPU | 40GB Samsung HBM2 | PCIe Gen4

Best acceleration for all AI workloads

Compatible with Generation 4 of the PCIe interface, the NVIDIA A100 is an Ampere generation GPU that is easy to integrate into existing servers.

The NVIDIA A100 is built on 7nm technology with 40GB of Samsung HBM2. Best acceleration for both existing FP32/ FP64 workloads as well as acceleration for new AI workloads is achieved. The NVIDIA A100 PCIe Gen4 add-in card is rated for up to 250W operation.

Product Data

Specification: NVIDIA A100 Tensor Core GPU

Technical White Paper: NVIDIA A100 Tensor Core GPU Architecture. Unprecedented acceleration at every scale

NVIDIA A100 Ampere generation GPU for PCIe using new Multi-Instance GPU MIG technology.
NVIDIA A100 Ampere generation GPU for PCIe.
NVIDIA A100 Tensor Core GPU for HGX can efficiently scale up to thousands of GPUs and can be partitioned into seven isolated GPU instances.
NVIDIA A100 can efficiently scale up to thousands of GPUs.
  NVIDIA A100 for NVIDIA HGX™ NVIDIA A100 for PCIe
GPU Architecture NVIDIA Ampere
Double-Precision Performance FP64: 9.7 TFLOPS
FP64 Tensor Core: 19.5 TFLOPS
Single-Precision Performance FP32: 19.5 TFLOPS
Tensor Float 32 (TF32): 156 TFLOPS | 312 TFLOPS*
Half-Precision Performance 312 TFLOPS | 624 TFLOPS*
Bfloat16 312 TFLOPS | 624 TFLOPS*
Integer Performance INT8: 624 TOPS | 1,248 TOPS*
INT4: 1,248 TOPS | 2,496 TOPS*
GPU Memory 40 GB HBM2
Memory Bandwidth 1.6 TB/sec
Error-Correcting Code Yes
Interconnect Interface PCIe Gen4: 64 GB/sec Third generation NVIDIA® NVLink®: 600 GB/sec** PCIe Gen4: 64 GB/sec Third generation NVIDIA® NVLink®: 600 GB/sec**
Form Factor 4/8 SXM GPUs in NVIDIA HGX™ A100 PCIe
Multi-Instance GPU (MIG) Up to 7 GPU instances
Max Power Consumption 400 W 250 W
Delivered Performance for Top Apps 100% 90%
Thermal Solution Passive
Compute APIs CUDA®, DirectCompute, OpenCL™, OpenACC®
* Structural sparsity enabled
** SXM GPUs via HGX A100 server boards; PCIe GPUs via NVLinkBridge for up to 2 GPUs
